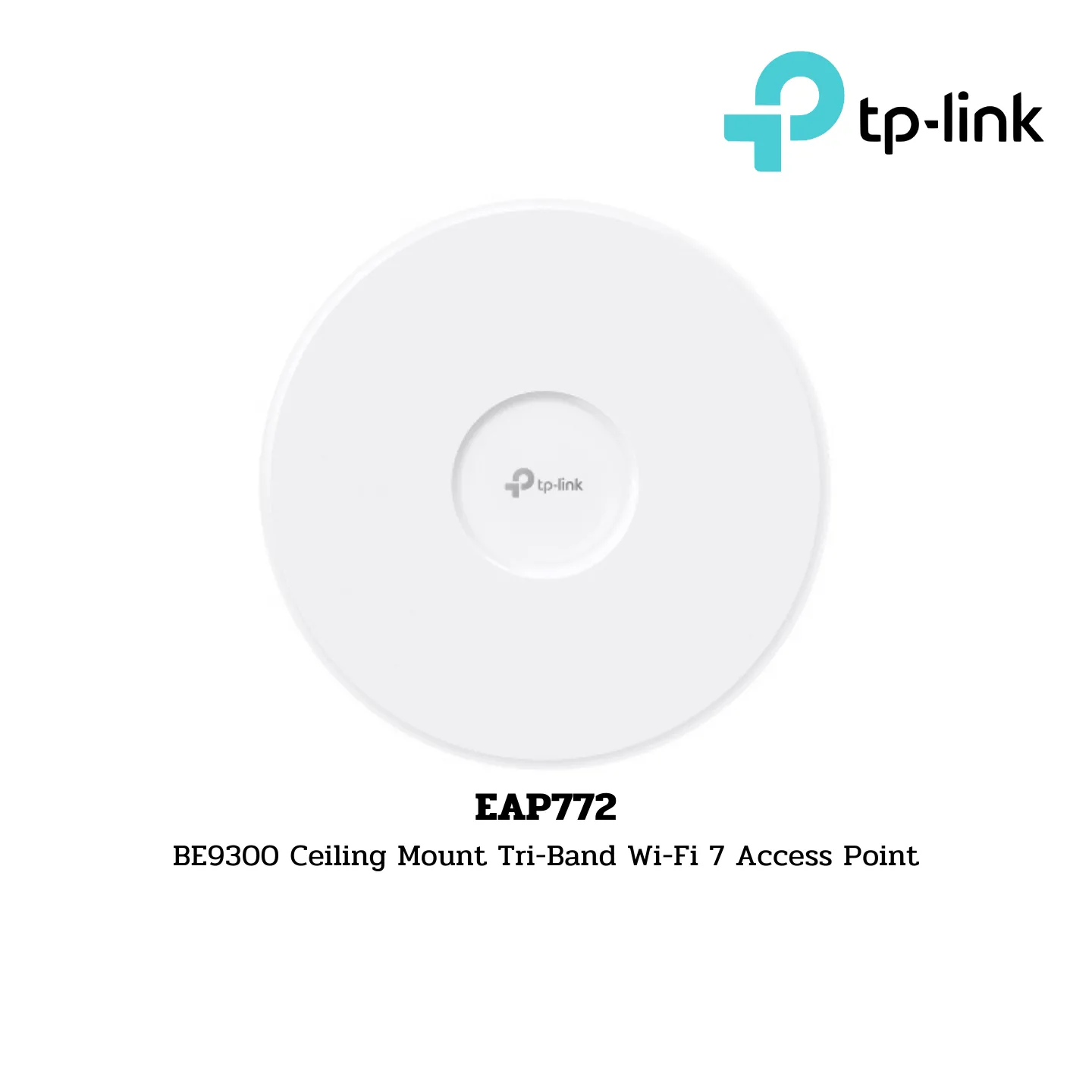

TP-Link Omada Access Points รุ่น EAP772

EAP772
BE9300 Ceiling Mount Tri-Band Wi-Fi 7 Access Point

Brand:

• TP-Link

Port:

• 1× 2.5G RJ45 Port

Speed:

• 574Mbps at 2.4 GHz + 2880 Mbps at 5 GHz + 5760 Mbps at 6 GHz

Feature:

• 802.3at PoE+ and 12V DC (Power Adapter is not included)
• 4× Internal Antennas
• MU-MIMO
• 320MHz Supported
• Seamless Roaming
• Band Steering
• Beamforming
• Load Balance
• Airtime Fairness
• MLO
• 4K-QAM
• Centralized Management by Omada SDN Controller
• Omada App

Hardware Features:

Interface:

• 1× 2.5G Ethernet Port
• Button: Reset

Power Supply:

• 802.3at PoE
• 12V/2.5A DC

Power Consumption:

• 24.05 W (For PoE)
• 20.92 W (For DC)

Dimensions (W x D x H): 8.7 × 8.7 × 1.3 in (220 × 220 × 32.5 mm)

Antenna Type: Internal Omni

• 2.4 GHz: 2× 4.0 dBi
• 5 GHz: 2× 5.0 dBi
• 6 GHz: 2× 5.0 dBi
• Bluetooth: 1 × 4.0 dBi, Bluetooth 5.2 (Firmware update may be required.)

Mounting: Ceiling / Wall Mounting (Kits Included)

Wireless Features:

Coverage: 140㎡ (1500 ft²)

Wireless Client Capacity: 380+**

Wireless Standards: IEEE 802.11 a/b/g/n/ac/ax/be

Frequency: 6 GHz, 5 GHz, and 2.4 GHz

Signal Rate:

• 2.4 GHz: 688 Mbps
• 5 GHz: 2882 Mbps
• 6 GHz: 5765 Mbps†

Wireless Functions:

• MLO‡
• 4K-QAM‡
• Seamless Roaming (802.11k/v/r)
• MU-MIMO‡
• EHT320‡
• Mesh△
• BSS Coloring‡
• OFDMA‡
• Load Balance
• Band Steering
• Beamforming
• Airtime Fairness
• Multiple SSIDS: 24 (8 on each band)
• Wireless Schedule
• Reboot Schedule
• QoS (WMM)
• Rate Limit
• Static IP/Dynamic IP
• RADIUS Accounting
• MAC Authentication

Wireless Security:

• Captive Portal Authentication△
• Access Control
• Maximum number of MAC Filter: 4,000
• Wireless Isolation Between Clients
• VLAN
• Rogue AP Detection
• WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise

Transmission Power:

• < 20 dBm (2.4 GHz, EIRP)
• < 23 dBm (5 GHz, band 1 & band 2, EIRP)
• < 28 dBm (5 GHz, band 3, EIRP)
• < 23 dBm (6 GHz, EIRP)

Management:

Omada App: Yes

Centralized Management:

• Omada Cloud-Based Controller
• Omada Hardware Controller (OC300)
• Omada Hardware Controller (OC200)
• Omada Software Controller

Cloud Access: Yes (Requires the use of an OC300, OC200, Omada Software Controller, or an Omada Cloud-Based Controller)

Email Alerts: Yes

LED ON/OFF Control: Yes

Management MAC Access Control: Yes

SNMP: v1, v2c, v3

System Logging Local/Remote Syslog: Yes

Web-based Management: Yes

Others:

Certification: CE, FCC, RoHS, IC

Package Contents:

• EAP772
• Installation Guide
• Ceiling/Wall Mounting Kit

Note: Power Adapter is NOT included.

Environment:

• Operating Temperature: 0 °C–40 °C (32 °F–104 °F)
• Storage Temperature: -40 °C–70 °C (-40 °F–158 °F)
• Operating Humidity: 10%–90% non-condensing
• Storage Humidity: 5%–90% non-condensing
