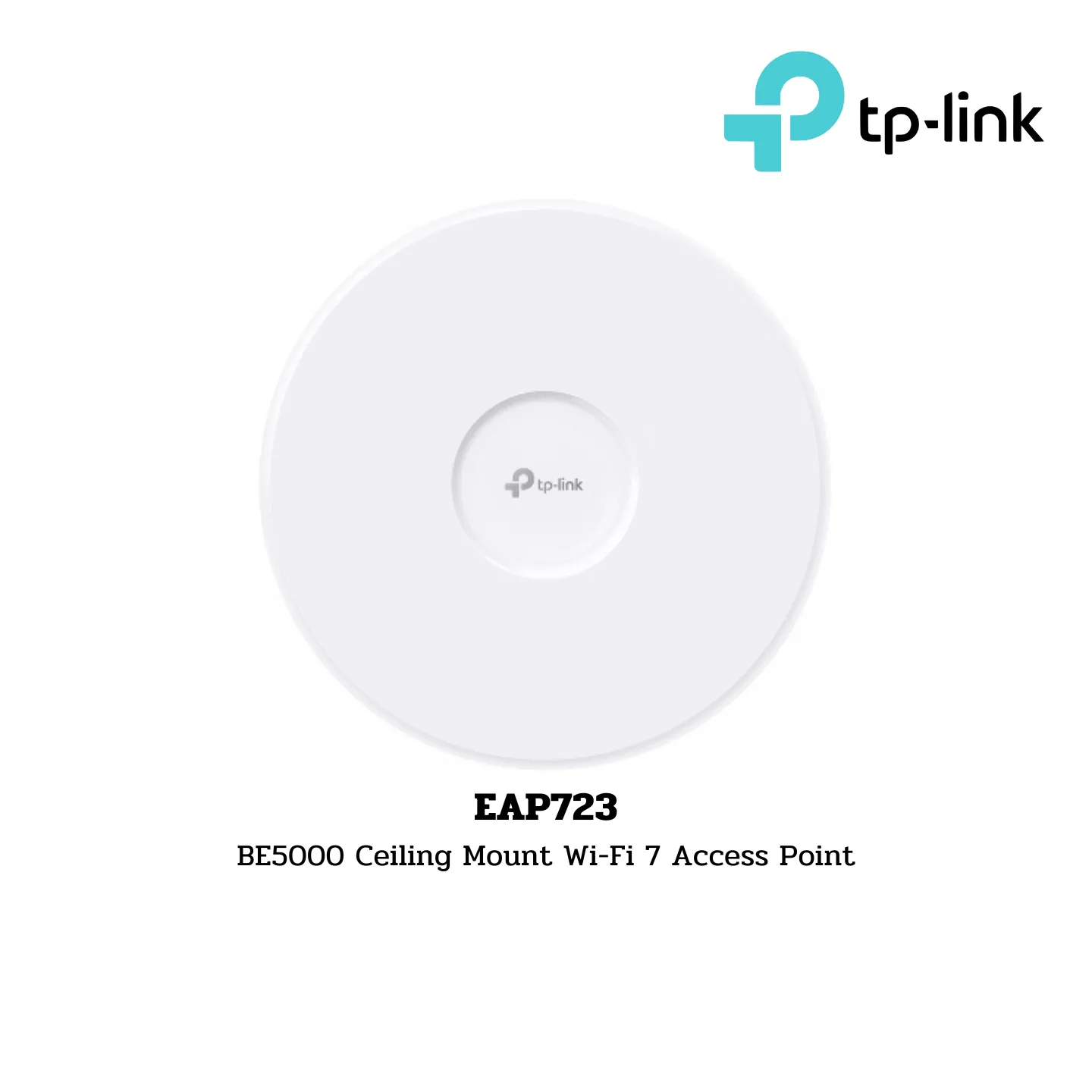

TP-Link Omada Access Points รุ่น EAP723

EAP723
BE5000 Ceiling Mount Wi-Fi 7 Access Point

Brand:

• TP-Link

Port:

• 1× 2.5G RJ45 Port

Speed:

• 688 Mbps at 2.4 GHz + 4320 Mbps at 5 GHz

Feature:

• 802.3at PoE+ and 12V DC (Power Adapter is not included)
• 4× Internal Antennas
• MU-MIMO
• 240MHz Supported
• Seamless Roaming
• Band Steering
• Beamforming
• Load Balance
• Airtime Fairness
• 4K-QAM
• Centralized Management by Omada SDN Controller
• Omada App

Hardware Features:

Interface:

• 1× 2.5G Ethernet Port
• Button: Reset

Power Supply:

• 802.3at PoE
• 12V/1.5A DC

Note: Power adapter is not included.

Power Consumption:

• 19.5 W (For PoE)
• 16.8 W (For DC)

Dimensions (W x D x H): 6.3 × 6.3 × 1.4 in (160 × 160 × 36.7 mm)

Antenna Type: Internal Omni

• 2.4 GHz: 2× 4.0 dBi
• 5 GHz: 2× 5.0 dBi

Mounting: Ceiling / Wall Mounting (Kits Included)

Wireless Features:

Coverage: 140㎡ (1500 ft²)

Wireless Client Capacity: 250+**

Wireless Standards: IEEE 802.11 a/b/g/n/ac/ax/be

Frequency: 2.4 GHz and 5 GHz

Signal Rate:

• 2.4 GHz: 688 Mbps
• 5 GHz: 4324 Mbps

Wireless Functions:

• 4K-QAM‡
• Seamless Roaming
• MU-MIMO‡
• EHT240‡
• Mesh△
• OFDMA‡
• Load Balance
• Band Steering
• Beamforming
• Airtime Fairness
• Multiple SSIDS: 16 (8 on each band)
• Wireless Schedule
• Reboot Schedule
• QoS (WMM)
• Rate Limit
• Static IP/Dynamic IP
• RADIUS Accounting
• MAC Authentication

Wireless Security:

• Captive Portal Authentication△
• Access Control
• Maximum number of MAC Filter: 4,000
• Wireless Isolation Between Clients
• VLAN
• Rogue AP Detection
• WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise

Transmission Power:

• < 25 dBm (2.4GHz)
• < 25 dBm (5GHz, band 1&band 4)
• < 24 dBm (5GHz, band 2&band 3)

Management:

Omada App: Yes

Centralized Management:

• Omada Cloud-Based Controller
• Omada Hardware Controller
• Omada Software Controller

Cloud Access: Yes (Requires the use of an OC300, OC200, Omada Software Controller, or an Omada Cloud-Based Controller)

Email Alerts: Yes

LED ON/OFF Control: Yes

Management MAC Access Control: Yes

SNMP: v1, v2c, v3

System Logging Local/Remote Syslog: Yes

Web-based Management: Yes

Others:

Certification: CE, FCC, RoHS, IC

Package Contents:

• EAP723
• Installation Guide
• Ceiling/Wall Mounting Kit

Environment:

• Operating Temperature: 0 °C–40 °C (32 °F–104 °F)
• Storage Temperature: -40 °C–70 °C (-40 °F–158 °F)
• Operating Humidity: 10%–90% non-condensing
• Storage Humidity: 5%–90% non-condensing
