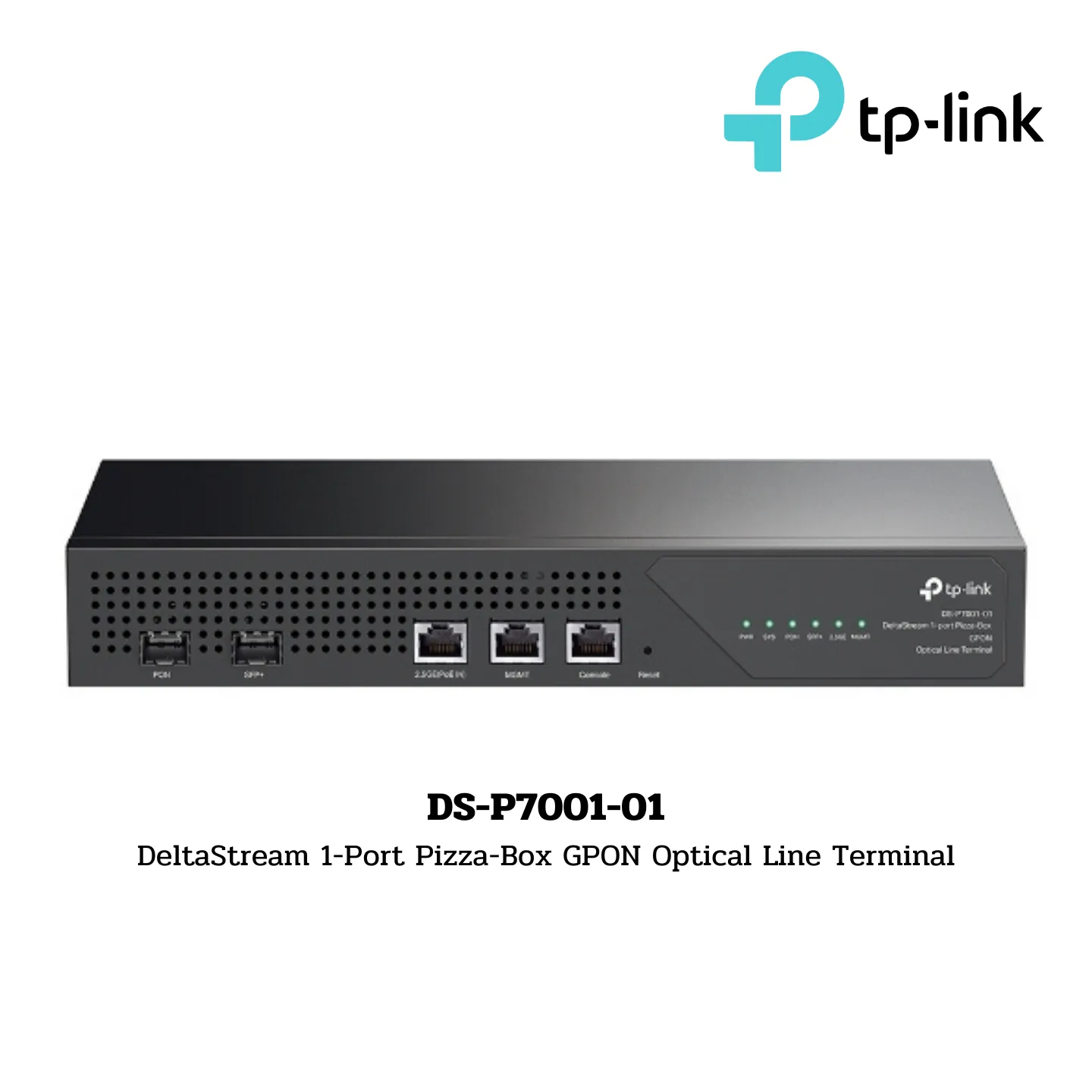

DS-P7001-01 DeltaStream 1-Port Pizza-Box GPON Optical Line Terminal

DS-P7001-01
DeltaStream 1-Port Pizza-Box GPON Optical Line Terminal

Brand:

• TP-Link

1-Port GPON OLT:

Chipset:

• Broadcom Chipset

Specification:

• 1x SFP GPON port
• 1x 10Gbps SFP+ uplink port
• 1x 2.5Gbps RJ45 uplink port
• 1x 1Gbps RJ45 uplink port
• 1x RJ45 Console port
• 12V DC Power Adapter, 802.3at PoE PD

Hardware Features:

Interface:

• 1× GPON Port
• 1× 10 Gbps SFP+ Uplink Port
• 1× 10/100/1000/2500 Mbps RJ45 Uplink Port
• 1× RJ45 Console Port
• 1× RJ45 MGMT Port
• Button: Reset Button

Power Supply:

• Dual Power Supplies: DC and 802.3at PoE
• DC Adapter: 12.0V/2.5A
• 802.3at PoE: 42.5~57V/0.6A

Power Consumption:

• Max. 17W

Dimensions (W x D x H):

• 11.6 × 5.5 × 1.7 in (294 × 140 × 44 mm)

Software Features:

Security:

• ACL (IPv4/IPv6), DHCP Filter, Port Security, Access Security

DHCP:

• DHCP Server, DHCP Relay

OMCI:

• Standard OMCI Management Supported

ONU Authentication:

• ONU Auto Authentication

ONU Security:

• Rogue ONU Detection and Isolation, Uplink and Downlink Data Encryption

Multi-Service:

• Multi-Service Traffic Identify and Rate Limit

QoS:

• IEEE 802.1p/DSCP QoS, Voice VLAN, Auto VoIP

Routing:

• Static Routing

Multicast:

• IGMP Snooping, MLD Snooping

Centralized Management:

• Large-Scale Devices Management, OLT Batch Configure, Upgrade, Reboot, Multi-Site Management, Intelligent Network Monitoring, Real-time Network Overview

GPON Port Attributes:

Max. Splitting Ratio:

• 1:128

Transmission Distance:

• 60 KM

Data Rate:

• Downstream: 2.5 Gbps, Upstream: 1.25 Gbps

Wavelength:

• Tx: 1490 nm, Rx: 1310 nm

Others:

Certification:

• CE, FCC

Package Contents:

• OLT Device, DC Adapter and Console Cable, Installation Guide, Mounting Brackets, Screws, and Rubber Feet

Environment:

Operating Temperature:

• 0°C~50°C (32°F~122°F)

Storage Temperature:

• -40℃~70℃ (-40°F~158°F)
