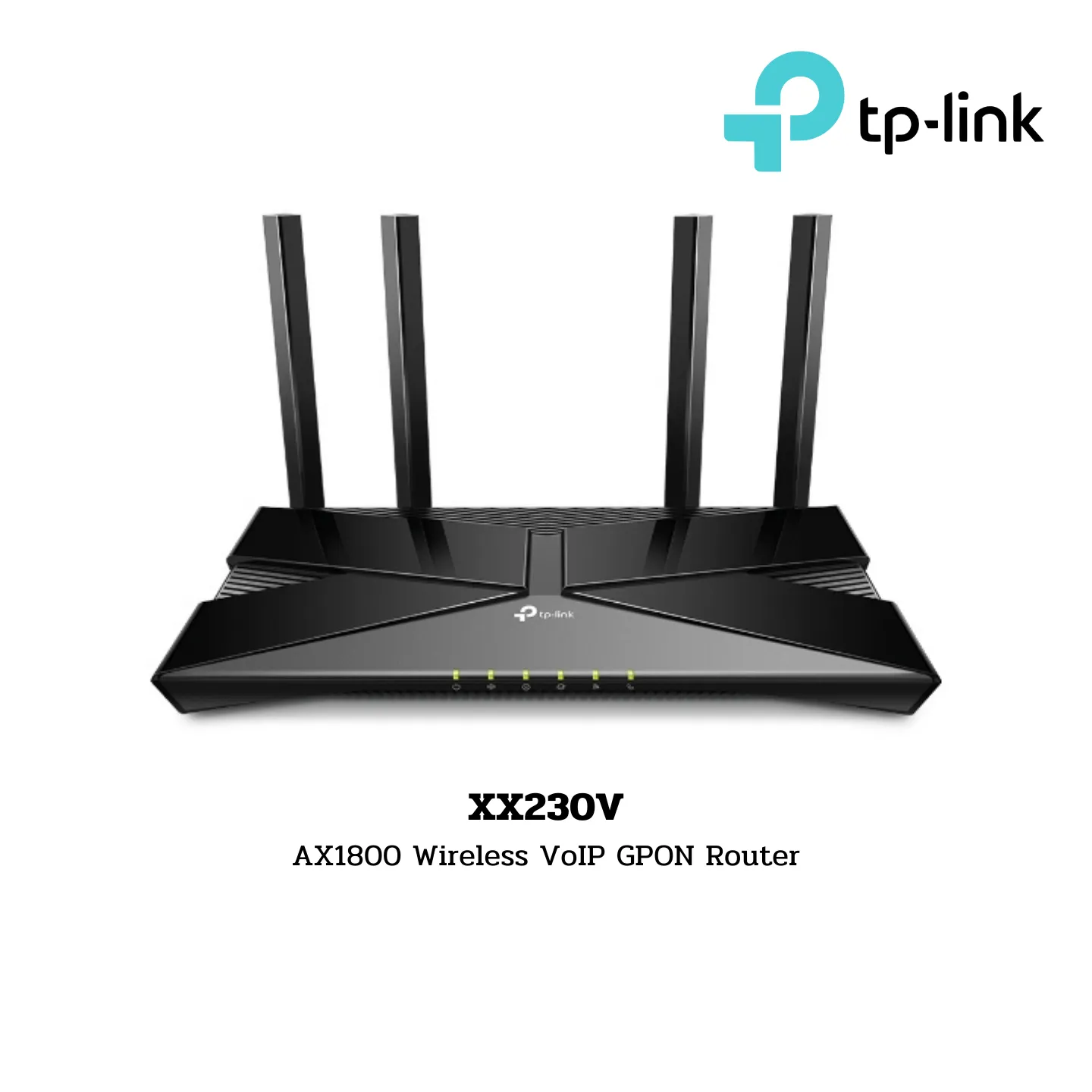

TP-Link Aginet PON Series รุ่น XX230V

XX230V
AX1800 Wireless VoIP GPON Router

Brand:

• TP-Link

AX1800 Wireless Gigabit GPON HGU with VOIP:

Chipset:

• Econet Chipset with G.984.x, Class B+

Speed:

• 574 Mbps at 2.4 GHz + 1201 Mbps at 5 GHz (HT80)

Specification:

• 1 x GE WAN/LAN port
• 3 x GE LAN ports
• 1 x RJ11 (FXS) Port
• 1 x USB2.0 Port
• 1 x SC/APC GPON port
• 4 x Fixed Antennas
• QoS, IGMP, OMCI, TR-069 (TR-098/181), Easymesh, Aginet APP, Cloud support

Hardware Features:

Interface:

• 1 x PON Port
• 1 x 10/100/1000 Mbps WAN/LAN Port
• 3 x 10/100/1000 Mbps LAN Ports
• 1 x RJ11 (FXS) Port
• 1 x USB2.0 Port

Buttons:

• WPS/Wi-Fi Button
• RESET Button
• Power On/Off Button

External Power Supply:

• 12V/1.5A

Data Transfer Rates:

• Downstream Speeds: 2.488 Gbps (GPON), 1.25 Gbps (EPON)
• Upstream Speeds: 1.244 Gbps (GPON), 1.25 Gbps (EPON)

Antenna:

• 4 External Antennas

Wireless Features:

Wireless Standards:

• IEEE 802.11a/n/ac/ax 5 GHz
• IEEE 802.11b/g/n/ax 2.4 GHz

Frequency:

• 2.4 GHz and 5 GHz

Signal Rate:

• 5 GHz: Up to 1201 Mbps (HE80)
• 2.4 GHz: Up to 574 Mbps (HE40)

Transmit Power:

• CE: <20 dBm (2.4 GHz)
• CE: <23 dBm (5 GHz)

Wireless Features:

• Enable/Disable Wireless Radio
• WMM
• Wireless Statistics

Wireless Security:

• WPA/WPA2/WPA3 Encryptions

Multi-SSID:

• 2× 5 GHz Multi-SSID
• 2× 2.4 GHz Multi-SSID

Wireless Schedule:

• Support 2.4 GHz and 5 GHz Wireless Schedule

Mesh Technology:

• EasyMesh compatible
• Support 802.11k/v/r

Software Features:

Quality of Service:

• Hardware QoS
• Flow Classification

Security:

• NAT Firewall
• Access Control
• MAC/IP/URL Filtering
• IP and MAC Address Binding
• Defense against “Denial of Service (DoS), SYN Flooding, Ping of Death”

Management:

• Local management: WebGUI, Aginet app (for end users)
• Remote management: Aginet ACS, OMCI, TR-069/TR-369, TR-098, TR-181, TR-111, TR-143 for service providers
• Aginet APP for end users: (login with TP-Link ID and bind your device to it)
• Cloud management: TP-Link Aginet Unified Cloud (TAUC)

DHCP:

• Server
• Client
• DHCP Client List
• Address Reservation
• DHCP Relay

Port Forwarding:

• Virtual Server
• Port Triggering
• DMZ
• ALG
• UPnP

Dynamic DNS:

• DynDns
• NO-IP

VPN pass-through:

• PPTP
• L2TP
• IPSec Pass-through

Protocols:

• IPv4
• IPv6

Advanced Features:

• Parental Controls
• Network Address Translation (NAT)
• Port Mapping (Grouping)
• Static Routing
• DNS Relay
• DDNS
• IGMP V1/V2/V3

VPN Server:

• PPTP VPN
• IPSec VPN
• OpenVPN

Others:

Package Contents:

• WiFi6 GPON Router XX230V
• RJ45 Ethernet Cable
• Power Adapter
• Quick Installation Guide

System Requirements:

• Microsoft Windows 98SE/NT/2000/XP/Vista™/7/8/8.1/10
• MAC OS, NetWare, UNIX or Linux
• Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser
• Subscription with an internet service provider (for internet access)

Ambient:

Operating Temperature:

• 0℃–40℃ (32℉–104℉)

Storage Temperature:

• -40℃–60℃ (-40℉–140℉)

Operating Humidity:

• 10%–90% non-condensing

Storage Humidity:

• 5%–90% non-condensing
