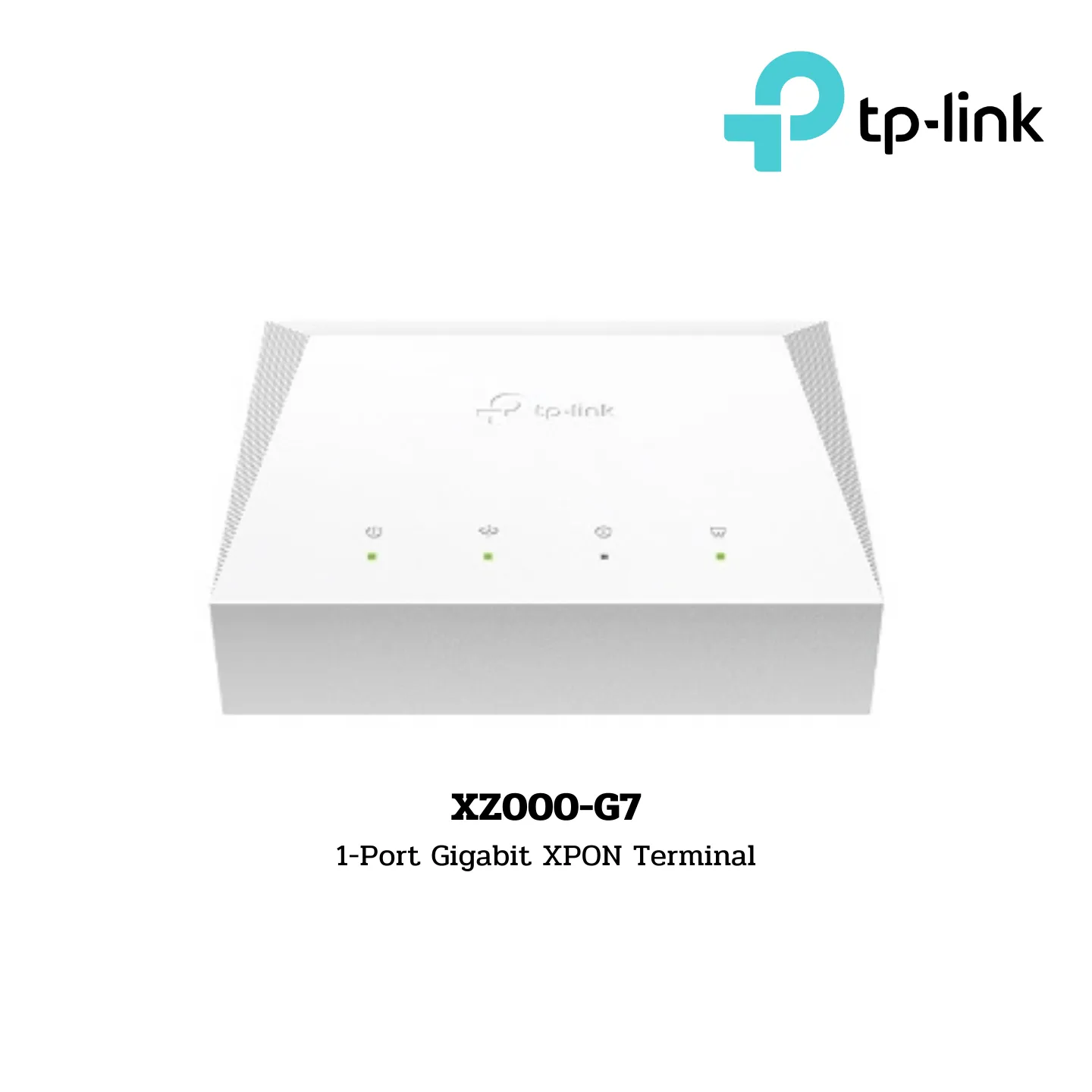

XZ000-G7
1-Port Gigabit XPON Terminal
Brand:
- TP-Link
1-Port Gigabit XPON SFU:
Chipset:
- Galachip Chipset with G.984.x, Class B+
Specification:
- 1 x GE LAN port
- 1 x SC/APC XPON port
- Bridge, QoS, VLAN, IGMP, OMCI
Hardware Features:
Interface:
- 1 x PON Port
- 1 x 10/100/1000 Mbps RJ45 Port
- Button: 1 RESET Button
External Power Supply:
- 9VDC/0.6A
IEEE Standards:
- IEEE 802.3
- IEEE 802.3u
- IEEE 802.1p
- IEEE 802.1Q
Data Rates:
- Downstream Speeds: 2.488 Gbps (GPON), 1.25 Gbps (EPON)
- Upstream Speeds: 1.244 Gbps (GPON), 1.25 Gbps (EPON)
Dimensions (W x D x H):
- 3.7 x 3.0 x 1.2 in. (95.0 x 75.0 x 29.3 mm)
Distance:
- 0–20 Km Max
GPON Standards:
- ITU-T G.988
- ITU-T G.984.1
- ITU-T G.984.2
- ITU-T G.984.3
- ITU-T G.984.4
Optical Module:
Class:
- B+
Receiver:
- Super-TIA
Transmitter:
- DFB Laser
Wavelength:
- Upstream: 1310 nm
- Downstream: 1490 nm
Software Features:
Advanced Features:
- Upstream and Downstream FEC
- Dynamic Bandwidth Allocation (DBA) support NSR/SR
- Up to 16 T-CONTs and 256 GEM Ports
- Optical power detection
- Dying Gasp
- Terminal Silent mechanism
VLAN:
- 802.1Q tag VLAN
- VLAN transparent mode/VLAN translation mode/VLAN trunk mode
- Authentication based on SN and Password
- VLAN Auto Detect
Security:
- AES Encryption
- Packet Filter based on VLAN
Management:
- Local management: WebGUI, Telnet
- Remote management: OMCI
IGMP:
- IGMP v1/v2/v3
Others:
Package Contents:
- XZ000-G7
- Power Adapter
Requirements:
- Microsoft Windows 98SE/NT/2000/XP/Vista™/7/8/8.1/10, MAC OS, NetWare, UNIX or Linux
- Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser
- Subscription with an internet service provider (for internet access)
Certifications:
- CE, RoHS
Environment:
Operating Temperature:
- 0℃–40℃ (32℉–104℉)
Storage Temperature:
- -40℃–60℃ (-40℉–140℉)
Operating Humidity:
- 10%–90% non-condensing
Storage Humidity:
- 5%–90% non-condensing
