TP-Link Aginet PON Series รุ่น XC220-G3

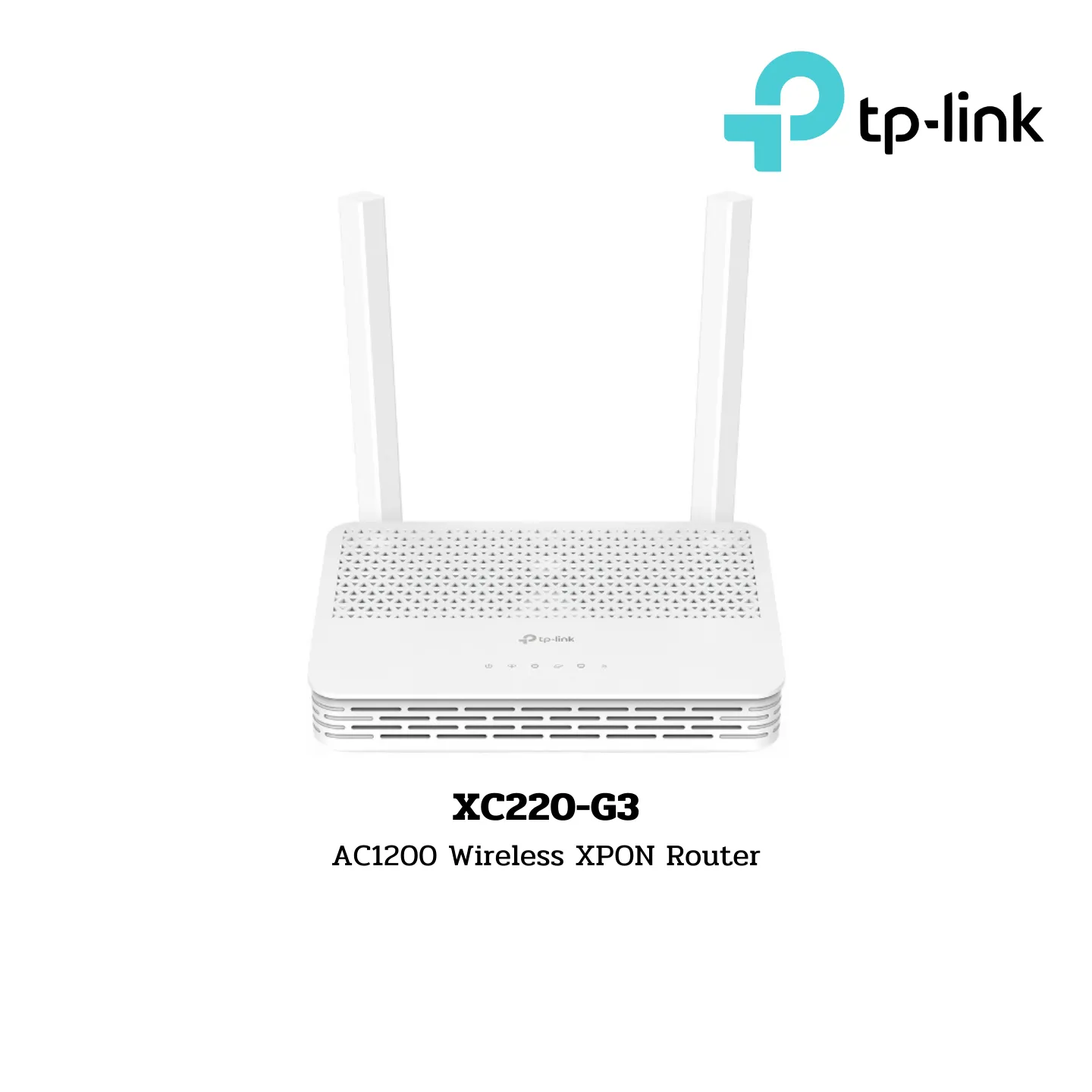

XC220-G3
AC1200 Wireless XPON Router

Brand:

• TP-Link

AC1200 Wireless Gigabit GPON HGU:

Chipset:

• Econet Chipset with G.984.x, Class B+

Speed:

• 300 Mbps at 2.4 GHz + 867 Mbps at 5 GHz

Specification:

• 2 x GE LAN ports
• 1 x SC/APC GPON port
• 2 x Fixed antennas
• QoS, IGMP, OMCI, TR-069(TR-098), MU-MIMO, Beamforming

Hardware Features:

Interface:

• 2 x 10/100/1000 Mbps RJ45 LAN Ports
• 1 x SC/APC PON Port

Button:

• WPS/Wi-Fi Button
• RESET Button

External Power Supply:

• 12V/1.0A

Data Rates:

• Downstream Speeds: 2.488 Gbps (GPON), 1.25 Gbps (EPON)
• Upstream Speeds: 1.244 Gbps (GPON), 1.25 Gbps (EPON)

Antenna:

• 2 External Antennas

Wireless Features:

Wireless Standards:

• IEEE 802.11ac/n/a 5 GHz
• IEEE 802.11b/g/n 2.4 GHz

Frequency:

• 2.4 GHz and 5 GHz (DFS Not supported)

Signal Rate:

• 867 Mbps on 5 GHz
• 300 Mbps on 2.4 GHz

Transmit Power:

• 2.4 GHz: 20 dBm (EIRP)
• 5 GHz: 23 dBm (EIRP)

Wireless Functions:

• Enable/Disable Wireless Radio
• WDS Bridge
• WMM
• Wireless Statistics

Wireless Security:

• WPA/WPA2/WPA3 encryptions

Wireless Schedule:

• Support 2.4 GHz and 5 GHz Wireless Schedule

Mesh Technology:

• EasyMesh Compatible
• Support 802.11k/v/r

Software Features:

Quality of Service:

• WMM

Security:

• NAT Firewall
• Access Control
• MAC/IP/URL Filtering
• IP and MAC Address Binding
• Defense against “Denial of Service (DoS), SYN Flooding, Ping of Death”

Management:

• Local Management: WebGUI management, Aginet app management
• Remote Management: Aginet ACS, OMCI, TR-069, TR-098, TR-181, TR-111, TR-143
• Cloud Management: TP-Link Aginet Unified Cloud (TAUC)

DHCP:

• Server
• Client

Port Forwarding:

• Virtual Server
• Port Triggering
• DMZ
• ALG
• UPnP

Dynamic DNS:

• DynDns
• NO-IP

VPN Pass-Through:

• PPTP
• L2TP
• IPSec Pass-through

Protocols:

• IPv4
• IPv6

Advanced Functions:

• Parental Controls
• Network Address Translation (NAT)
• Port Mapping (Grouping)
• Static Routing
• DNS Relay
• DDNS
• IGMP V1/V2/V3

Others:

Package Contents:

• AC1200 Wireless XPON Router XC220-G3
• RJ45 Ethernet Cable
• Power Adapter
• Quick Installation Guide
• GPL Statement

System Requirements:

• Microsoft Windows 98SE/NT/2000/XP/Vista™/7/8/8.1/10
• MAC OS
• NetWare
• UNIX or Linux
• Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser
• Subscription with an internet service provider (for internet access)

Environment:

Operating Temperature:

• 0℃–40℃ (32℉–104℉)

Storage Temperature:

• -40℃–60℃ (-40℉–140℉)

Operating Humidity:

• 10%–90% non-condensing

Storage Humidity:

• 5%–90% non-condensing
