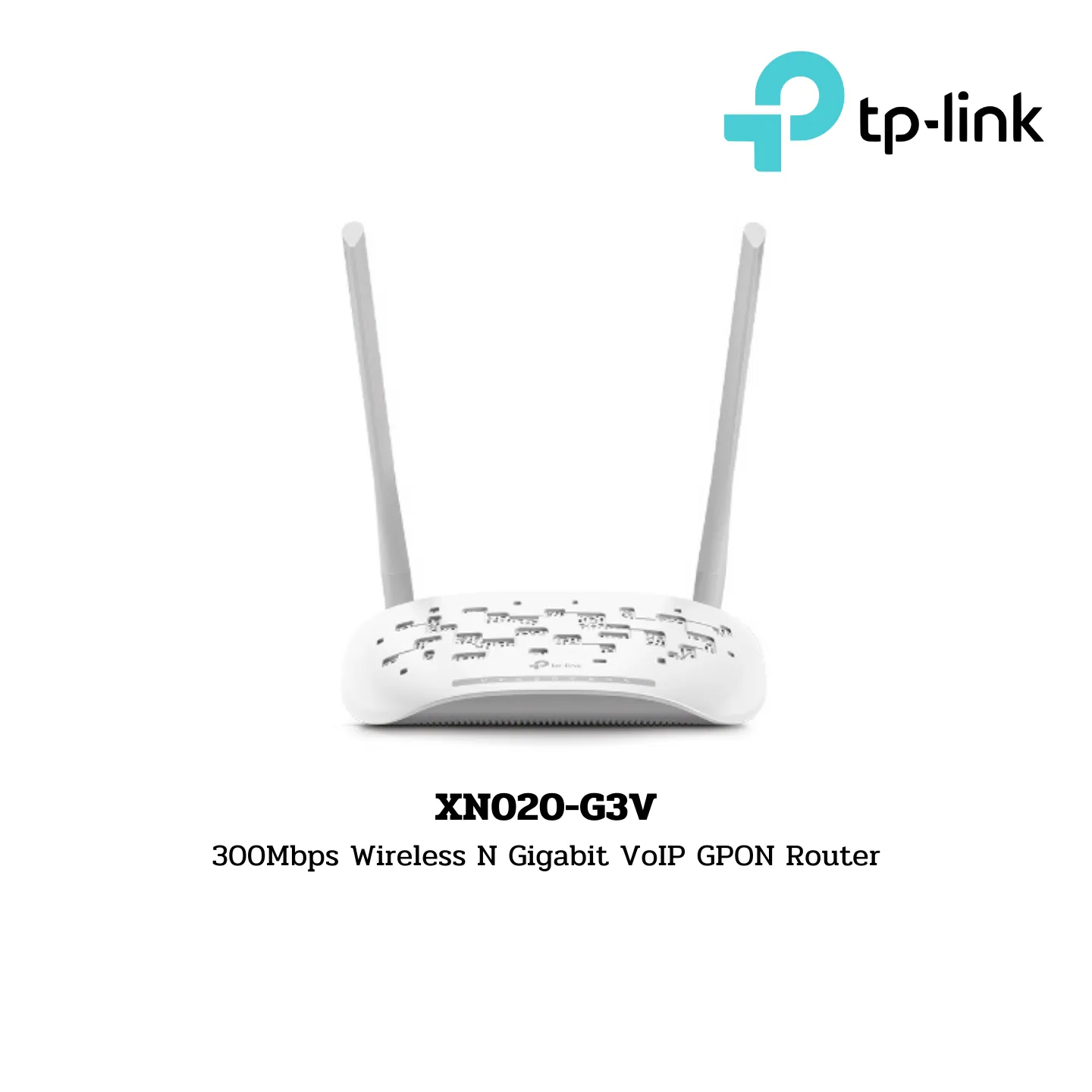

TP-Link Aginet PON Series รุ่น XN020-G3V

XN020-G3V
300Mbps Wireless N Gigabit VoIP GPON Router

Brand:

• TP-Link

300Mbps Wireless N GPON HGU with VOIP:

Chipset:

• Econet Chipset with G.984.x, Class C+

Speed:

• 802.11b/g/n, 300Mbps at 2.4GHz

Specification:

• 1 x GE + 1 x FE LAN ports
• 1 x RJ11 (FXS) Port
• 1 x SC/APC GPON port
• 2 x Fixed antennas
• QoS, IGMP, OMCI, TR-069 (TR-098)

Hardware Features:

Transmission Distance:

• 0 ~ 20Km Max

Interface:

• 1 x SC/APC Port
• 1 x 10/100/1000Mbps LAN Port
• 1 x 10/100Mbps LAN Port
• 1 x FXS Port

Button:

• Power On/Off Button
• Reset Button
• WPS/Wi-Fi Button

External Power Supply:

• 12V/0.6A

Dimensions (W x D x H):

• 7.1 × 4.9 × 1.4 in. (181.5 × 125.7 × 36.2mm)

Antenna Gain:

• 2×2, 2.4G 5dBi

GPON Standards:

• ITU G.984.1
• ITU G.984.2
• ITU G.984.3
• ITU G.984.4

Optical Module:

Class:

• C+

Optical Wavelength:

• Transmit at 1310nm
• Receive at 1490nm

Bandwidth:

• Downstream up to 2.488Gbps
• Upstream up to 1.244Gbps Max

Receiver:

• APD-TIA

Transmitter:

• DFB Laser

Wireless Features:

Frequency:

• 2.4GHz

Signal Rate:

• 300Mbps at 2.4GHz

Transmit Power:

• <20dBm (2.4GHz)

Wireless Functions:

• Enable/Disable Wireless Radio
• WMM
• Wireless Statistics

Wireless Security:

• 64/128-bit WEP
• WPA/WPA2
• WPA-PSK/WPA-PSK2 encryptions

Wireless Schedule:

• Support 2.4GHz Schedule

Software Features:

Quality of Service:

• Hardware QoS

Security:

• NAT Firewall
• SPI Firewall
• Access Control
• MAC/URL Filtering
• Denial of Service (DoS)
• SYN Flooding
• Ping of Death
• IP and MAC Address Binding

Management:

• OMCI
• Web-Based Configuration
• Command Line Interface
• SSL for TR-069
• OMCI-Based Firmware Upgrade

WAN Connection Type:

• PPPoE
• Dynamic IP
• Static IP
• Bridge

DHCP:

• Server
• Client
• DHCP Client List
• Address Reservation
• DHCP Relay

Port Forwarding:

• Virtual Server
• Port Triggering
• DMZ
• ALG
• UPnP

Dynamic DNS:

• DynDns
• NO-IP

Protocols:

• Supports IPv4 and IPv6

Advanced Functions:

• SN, Password, SN + Password Authentication Mode
• Upstream and Downstream FEC
• AES Encryption
• Dynamic Bandwidth Allocation (DBA) support NSR/SR
• 802.1Q VLAN
• Static Routing
• IGMP v1/v2/v3
• 16 T-CONTs
• 256 GEM Ports

IPSec VPN:

• Support up to 10 IPSec VPN tunnels

Others:

Package Contents:

• 300Mbps Wireless N Gigabit VoIP GPON Router XN020-G3V
• RJ11 Phone Cable
• RJ45 Ethernet Cable
• Quick Installation Guide
• Power Adapter

System Requirements:

• Microsoft Windows 98SE, NT, 2000, XP, Vista™, or Windows 7, 8, 8.1, 10
• MAC OS, NetWare, UNIX, or Linux
• Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser
• Cable or DSL Modem

Certifications:

• CE
• Anatel

Environment:

Operating Temperature:

• 0℃~40℃ (32℉~104℉)

Storage Temperature:

• -40℃~70℃ (-40℉~158℉)

Operating Humidity:

• 10%~90% non-condensing

Storage Humidity:

• 5%~90% non-condensing
