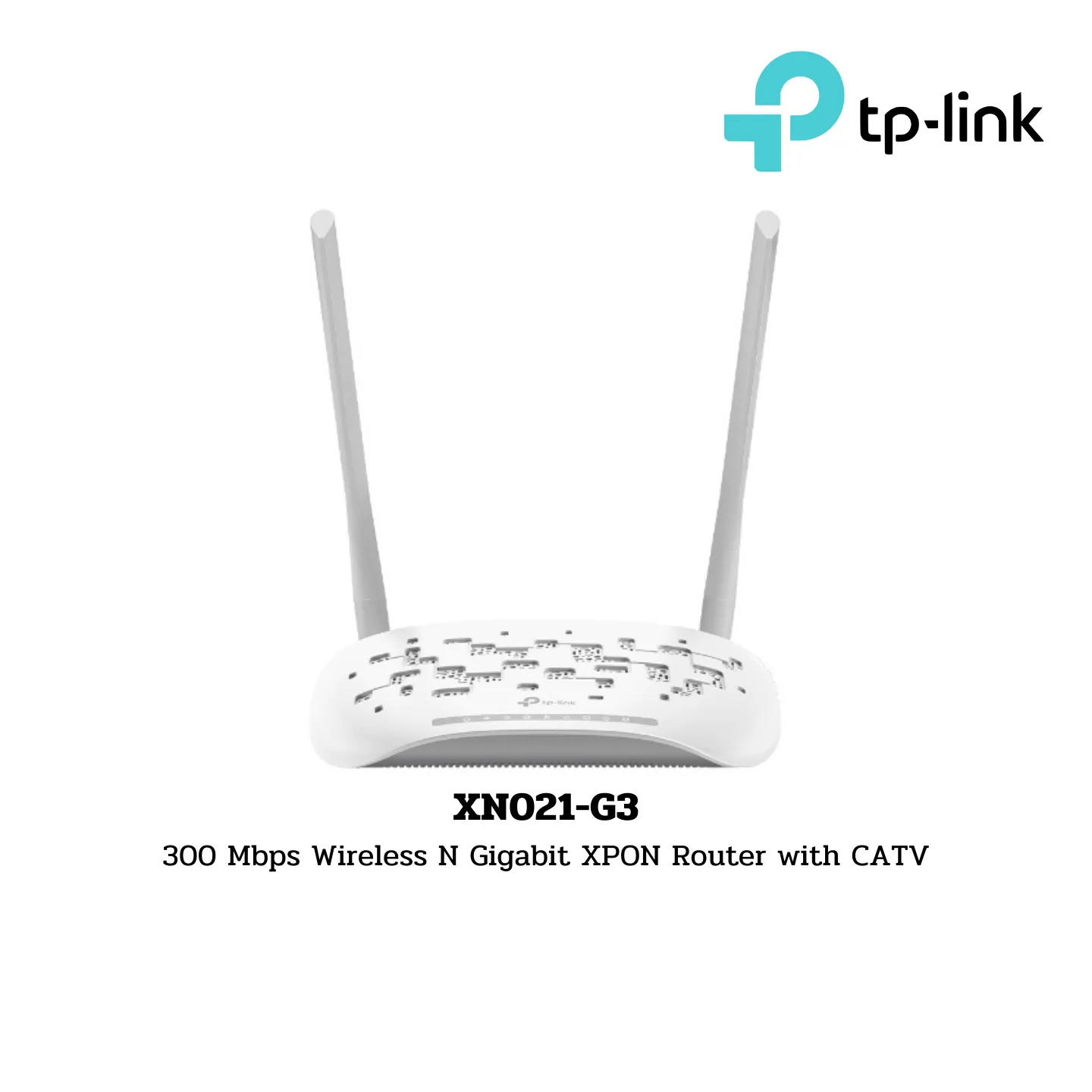

TP-Link Aginet PON Series รุ่น XN021-G3

XN021-G3
300 Mbps Wireless N Gigabit XPON Router with CATV

Brand:

• TP-Link

300Mbps Wireless N Gigabit XPON Router with CATV:

Chipset:

• Econet Chipset with G.984.x, Class B+

Speed:

• 802.11b/g/n, 300Mbps at 2.4GHz

Specification:

• 1 x GE + 1 x FE LAN ports
• 1 x SC/APC XPON port
• 1 x CATV port
• 2 x Fixed antennas
• QoS, IGMP, OMCI, TR-069 (TR-098)

Hardware Features:

Interface:

• 1× 10/100/1000 Mbps RJ45 LAN Port
• 1× 10/100 Mbps RJ45 LAN Port
• 1× CATV Port
• 1× PON Port
• Button: RESET Button

External Power Supply:

• 9V/0.6A

Data Transfer Rates:

• Downstream Speeds: 2.488 Gbps (GPON), 1.25 Gbps (EPON)
• Upstream Speeds: 1.244 Gbps (GPON), 1.25 Gbps (EPON)

Antenna:

• 2× External Antennas

Wireless Features:

Wireless Standards:

• IEEE 802.11b/g/n 2.4 GHz

Frequency:

• 2.4 GHz

Signal Rate:

• Up to 300 Mbps

Transmission Power:

• CE: < 20 dBm

Wireless Features:

• Enable/Disable Wireless Radio
• WMM
• Wireless Statistics

Wireless Security:

• WPA/WPA2/WPA3 Encryptions

Wireless Schedule:

• Support 2.4 GHz Wireless Schedule

Software Features:

QoS:

• WMM

Security:

• SPI Firewall
• DDoS
• Access Control
• IP-MAC binding

Management:

• Local management: WebGUI management
• Remote management: OMCI, TR-069, TR-098, TR-143

DHCP:

• Server
• Client
• DHCP Client List
• Address Reservation
• DHCP Relay

Port Forwarding:

• Virtual Server
• Port Triggering
• DMZ
• ALG
• UPnP

Dynamic DNS:

• DynDns
• NO-IP

Protocols:

• IPv4
• IPv6

Advanced Features:

• Parental Controls
• Network Address Translation (NAT)
• Port Mapping (Grouping)
• Static Routing
• DNS Relay
• DDNS
• IPTV Support
• IGMP V2/3 and IGMP Snooping/Proxy

Others:

Package Contents:

• 1× XPON Router XN021-G3
• 1× RJ45 Ethernet Cable
• 1× Power Adapter
• 1× Quick Installation Guide

System Requirements:

• Microsoft Windows 98SE/NT/2000/XP/Vista™/7/8/8.1/10
• MAC OS, NetWare, UNIX or Linux
• Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser
• Subscription with an internet service provider (for internet access)

Ambient:

Operating Temperature:

• 0℃–40℃ (32℉–104℉)

Storage Temperature:

• -40℃–60℃ (-40℉–140℉)

Operating Humidity:

• 10%–90% non-condensing

Storage Humidity:

• 5%–90% non-condensing
