TP-Link Aginet PON Series รุ่น DS-P7001-04

DS-P7001-04

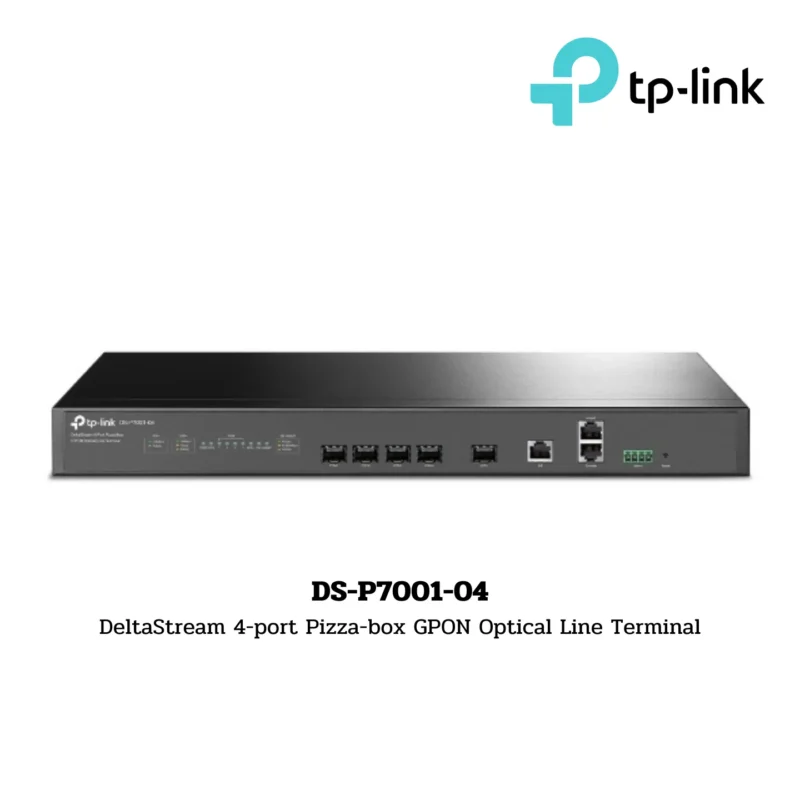

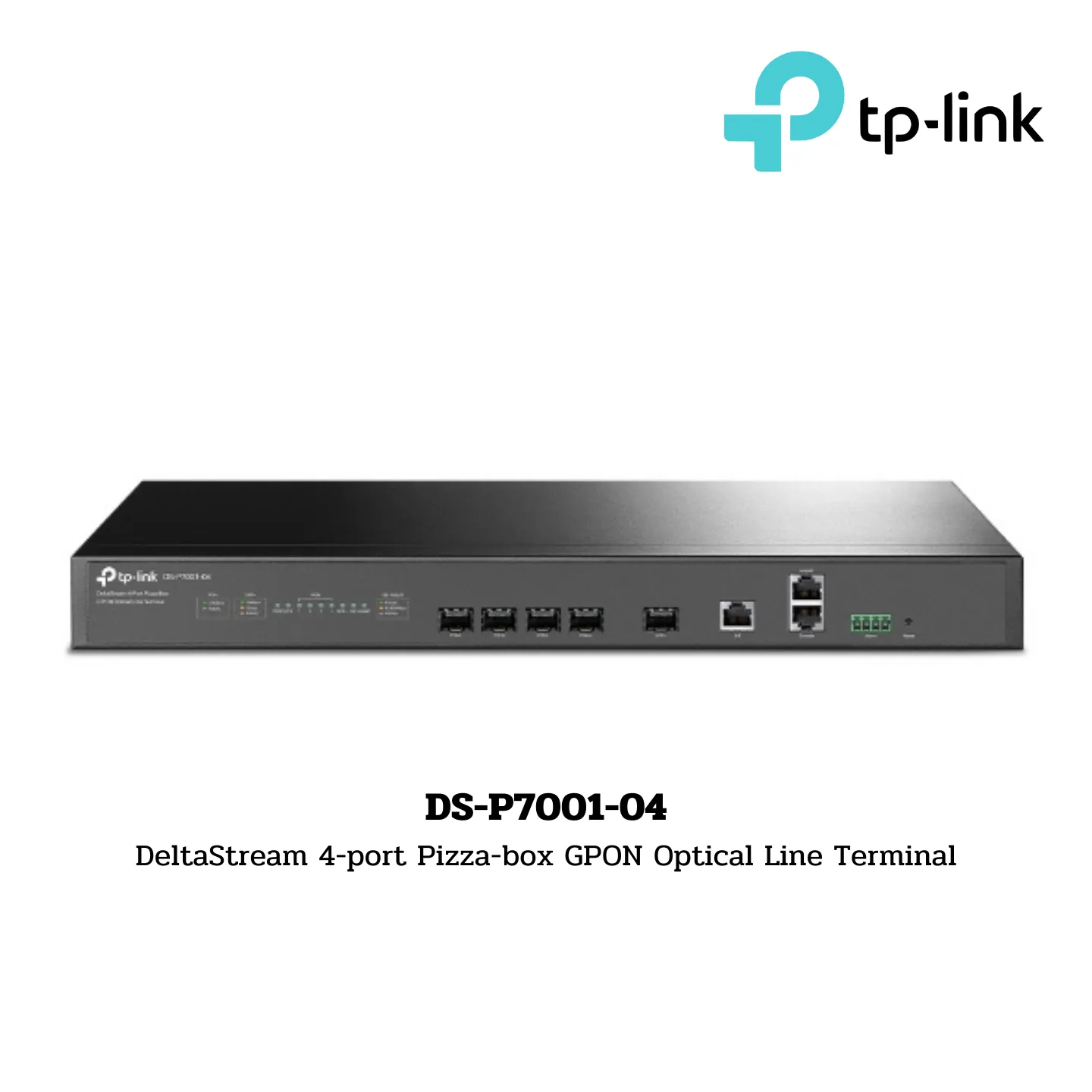

DeltaStream 4-port Pizza-box GPON Optical Line Terminal

Brand:

• TP-Link

4-Port GPON OLT:

Chipset:

• Broadcom Chipset

Specification:

• 4x SFP GPON ports
• 1x 10Gbps SFP+ uplink port
• 1x Gigabit RJ45 uplink port
• 1x RJ45 Console port
• 1x Gigabit RJ45 Manage port
• Built-in redundancy power, AC+DC power input

Hardware Features:

Interface:

• 4× 2.5G PON Ports
• 1× 10 Gbps SFP+ Uplink Port
• 1× 10/100/1000 Mbps RJ45 Uplink Port
• 1× RJ45 Console Port
• 1× RJ45 MGMT Port
• 1× Alarm Port (Reserved)
• Button: Reset Button

Power Supply:

• Dual Power Supplies
• AC: 100V~240V, 50/60Hz
• DC: -38.4V~-72V

Power Consumption:

• Max. 58W

Dimensions (W x D x H):

• 17.3 × 7.1 × 1.7 in (440 × 180 × 44 mm)

Software Features:

Security:

• ACL
• 802.1x Authentication
• ARP Inspection
• IP Source Guard

DHCP:

• DHCP Server
• DHCP Relay

OMCI:

• Standard OMCI Management Supported

ONU Authentication:

• ONU Auto Authentication

ONU Security:

• Rogue ONU Detection and Isolation
• Uplink and Downlink Data Encryption

Multi-Service:

• Multi-Service Traffic Identify and Rate Limit

QoS:

• IEEE 802.1p/DSCP QoS
• Voice VLAN
• Auto VoIP

Routing:

• Static Routing

Multicast:

• IGMP Snooping
• MLD Snooping

Centralized Management:

• Large-Scale Devices Management
• OLT Batch Configure, Upgrade, Reboot
• Multi-Site Management
• Intelligent Network Monitoring
• Real-time Network Overview

GPON Port Attributes:

Max. Splitting Ratio:

• 1:128

Transmission Distance:

• 20km

Data Rate:

• Downstream: 2.5 Gbps
• Upstream: 1.25 Gbps

Wavelength:

• Tx: 1490 nm
• Rx: 1310 nm

Interface Type:

• SC/UPC

Fiber Type:

• 9/125μm SMF (Single Mode Fiber)

Tx Power:

• Class C+

Others:

Certification:

• CE, FCC

Package Contents:

• OLT Device
• Power Cord and Console Cable
• Installation Guide
• Mounting Brackets, Screws, and Rubber Feet

Environment:

Operating Temperature:

• 0°C~50°C (32°F~122°F)

Storage Temperature:

• -40℃~70℃ (-40°F~158°F)
