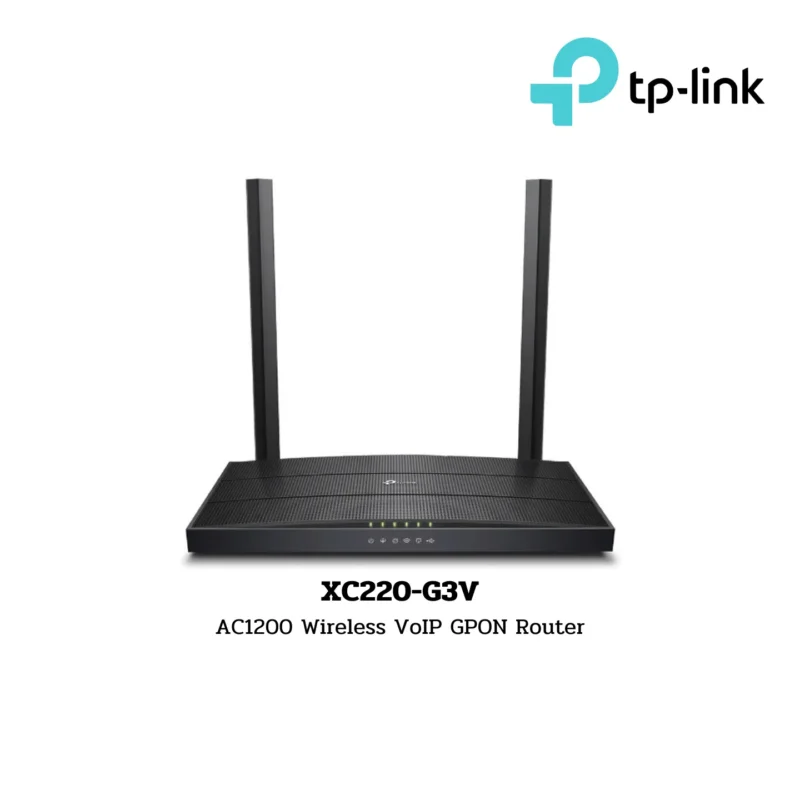

XC220-G3V TP-Link AC1200 Wireless VoIP GPON Router

XC220-G3V
AC1200 Wireless VoIP GPON Router

Brand:

• TP-Link

AC1200 Wireless Gigabit XPON HGU with VOIP:

Chipset:

• Econet Chipset with G.984.x, Class B+

Speed:

• 300 Mbps at 2.4 GHz + 867 Mbps at 5 GHz

Specification:

• 4 x GE LAN ports
• 1 x RJ11 (FXS) Port
• 1 x SC/APC XPON port
• 2 x Fixed antennas
• QoS, IGMP, OMCI, TR-069 (TR-098), MU-MIMO, Beamforming

Hardware Features:

Interface:

• 4 x 10/100/1000 Mbps RJ45 LAN Ports
• 1 x SC/APC GPON Port
• 1 x RJ11 FXS Port

Button:

• Power On/Off Button
• WPS/Wi-Fi Button
• RESET Button

External Power Supply:

• 12V/1.5A

Antenna:

• 2 External Dual Band Antennas

Wireless Features:

Wireless Standards:

• IEEE 802.11ac/n/a 5GHz
• IEEE 802.11b/g/n 2.4GHz

Frequency:

• 2.4GHz and 5GHz (not supporting DFS)

Signal Rate:

• 867Mbps at 5GHz
• 300Mbps at 2.4GHz

Transmit Power:

• 2.4GHz: 20dBm (EIRP)
• 5GHz: 23dBm (EIRP)

Wireless Functions:

• Enable/Disable Wireless Radio
• WDS Bridge
• WMM
• Wireless Statistics

Wireless Security:

• WPA/WPA2, WPA-PSK/WPA-PSK2 encryptions

Wireless Schedule:

• Support 2.4GHz and 5GHz Wireless Schedule

Mesh Technology:

• WPA EasyMesh
• TP-Link OneMesh

Software Features:

Quality of Service:

• Hardware QoS

Security:

• NAT Firewall
• Access Control
• MAC/IP/URL Filtering
• IP and MAC Address Binding
• Defense against “Denial of Service (DoS), SYN Flooding, Ping of Death”

Management:

• Web-Based Configuration (HTTP)
• Remote Management
• Command Line Interface
• SSL for TR-069
• Web-Based Firmware Upgrade
• Diagnostic Tools
• OMCI

DHCP:

• Server
• Client
• DHCP Client List
• Address Reservation
• DHCP Relay

Port Forwarding:

• Virtual Server
• Port Triggering
• DMZ
• ALG
• UPnP

Dynamic DNS:

• DynDns
• NO-IP

VPN Pass-Through:

• PPTP
• L2TP
• IPSec Pass-through

Protocols:

• Supports IPv4 and IPv6

VoIP Features:

• Call hold, Call forward, Warm call, Do not disturb, Call restriction, Speed dial, etc.
• Caller ID
• 3-party conference
• SIP account – up to 8 accounts

Advanced Functions:

• Parental Control
• Network Address Translation (NAT)
• Port Mapping (Grouping)
• Static Routing
• DNS Relay
• DDNS
• IGMP V1/V2/V3

Others:

Package Contents:

• AC1200 Wireless VoIP GPON Router
• RJ45 Ethernet Cable
• Power Adapter
• Quick Installation Guide

System Requirements:

• Microsoft Windows 98SE, NT, 2000, XP, Vista™, or Windows 7, 8, 8.1, 10
• MAC OS, NetWare, UNIX or Linux
• Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser
• Subscription with an internet service provider (for internet access)

Environment:

Operating Temperature:

• 0℃~40℃ (32℉ ~104℉)

Storage Temperature:

• -40℃~70℃ (-40℉ ~158℉)

Operating Humidity:

• 10%~90% non-condensing

Storage Humidity:

• 5%~90% non-condensing
