S6800-2C-H1 H3C S6800 Series Switch

S6800-2C-H1

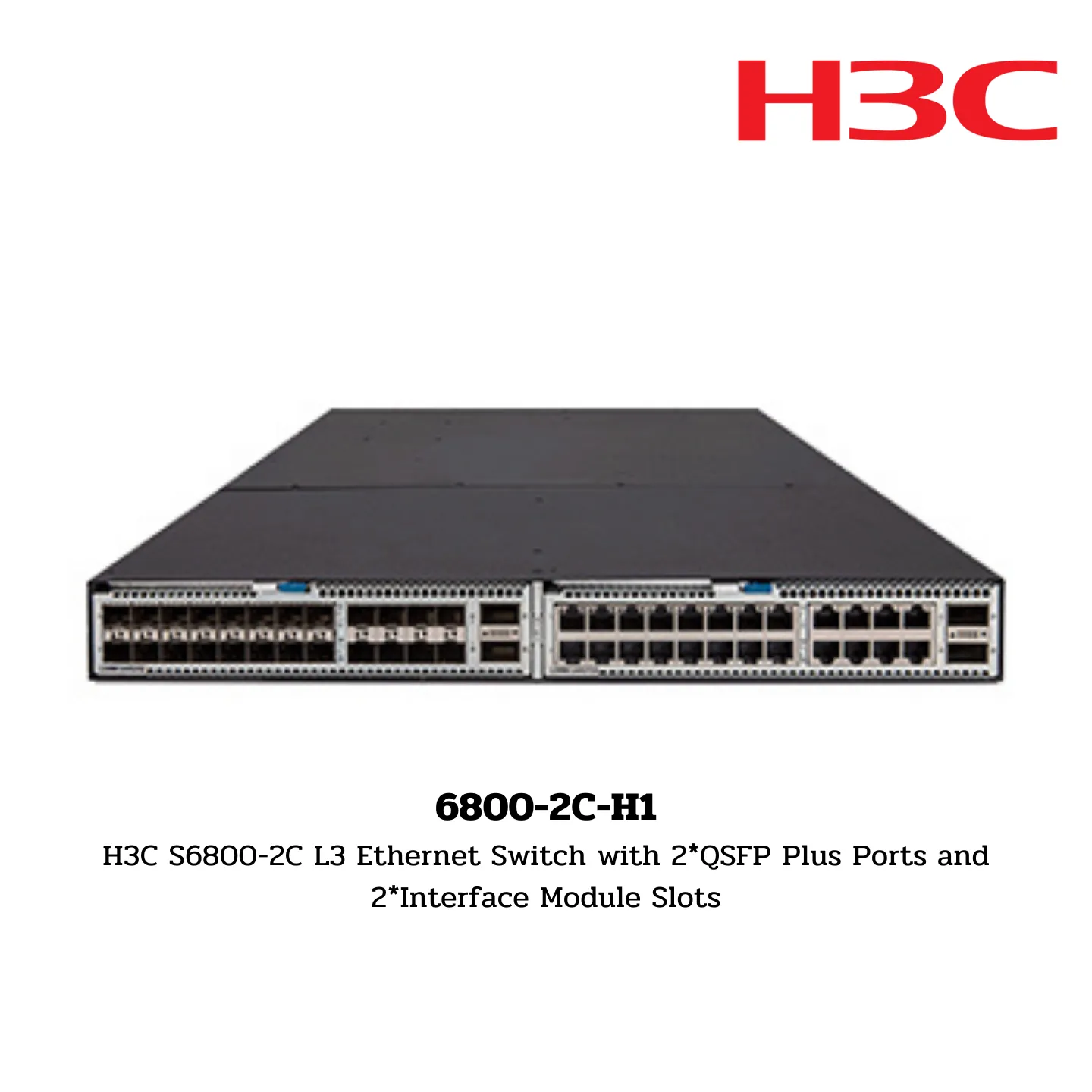

H3C S6800-2C L3 Ethernet Switch with 2*QSFP Plus Ports and 2*Interface Module Slots

Hardware Specifications

Dimensions (H × W × D):

• 44.2 × 440 × 660 mm (1.74 × 17.32 × 18.11 in)

Weight:

• ≤16kg (35.27 lb)

Serial Console Port:

• 1

Out-of-Band Management Port:

• One GE copper port and one GE fiber port

Mini USB Console Port:

• 1

USB Port:

• 1

QSFP+ Port:

• 2

SFP Port:

• None

1/10GBASE-T Port:

• None

Expansion Slot:

• 2

CPU:

• 1GHz @ 2 Core

Flash/SDRAM:

• 1GB/4GB

Latency:

• <1μs

Switching Capacity:

• 1.44Tbps

Forwarding Capacity:

• 1080Mpps

Buffer (byte):

• 16MB

AC-Input Voltage:

• Rated voltage range: 100V to 240V AC, 50/60Hz
• Maximum voltage range: 90V to 290V AC

DC-Input Voltage:

• Rated voltage range: -38.4V to -72V DC

Power Module Slot:

• 2

Fan Tray Slot:

• Two hot-swappable fan

Air Flow Direction:

• From front to rear or from rear to front

Static Power Consumption:

• Single AC: 95W
• Dual AC: 110W
• Single DC: 91W
• Dual DC: 105W

Typical Power Consumption:

• Single AC: 439W
• Dual AC: 450W
• Single DC: 443W
• Dual DC: 445W

Maximum Heat Consumption (BTU/hour):

• Single AC: 1498W
• Dual AC: 1535W
• Single DC: 1511W
• Dual DC: 1518W

Operating Temperature:

• 0℃ to 45℃ (32℉ to 113℉)

Operating Humidity:

• 5% to 95%, non-condensing

MTBF (Mean Time Between Failures):

• 47.2 years

MTTR (Mean Time to Repair):

• 1 hour
