S6800-4C-H1 H3C S6800 Series Switch

S6800-4C-H1

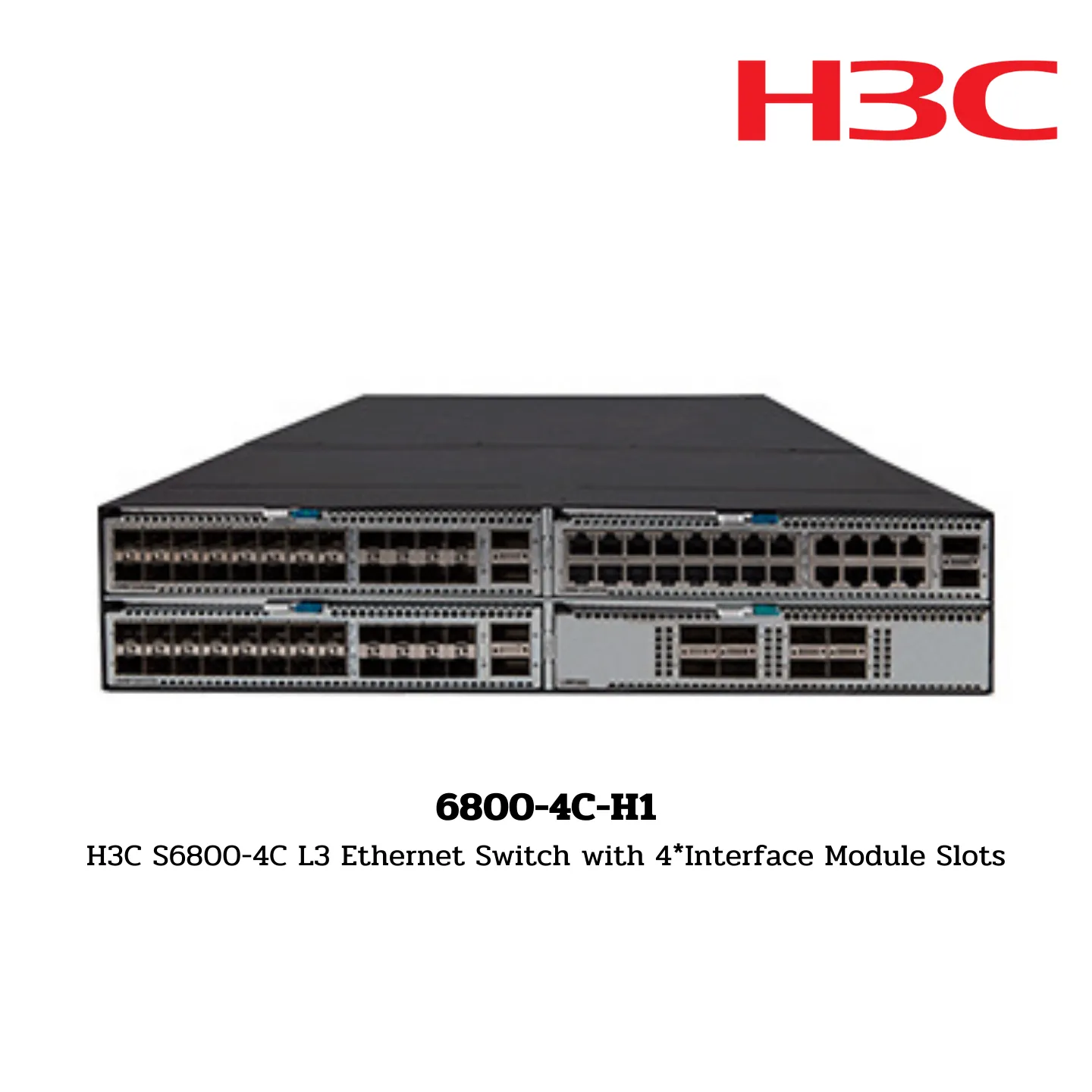

H3C S6800-4C L3 Ethernet Switch with 4*Interface Module Slots

Hardware Specifications

Dimensions (H × W × D):

• 88.1 × 440 × 660 mm (3.4 × 17.32 × 18.11 in)

Weight:

• ≤27kg (59.52 lb)

Serial Console Port:

• 1

Out-of-Band Management Port:

• One GE copper port and one GE fiber port

Mini USB Console Port:

• 1

USB Port:

• 1

QSFP+ Port:

• None

SFP Port:

• None

1/10GBASE-T Port:

• None

Expansion Slot:

• 4

CPU:

• 1GHz @ 2 Core

Flash/SDRAM:

• 1GB/4GB

Latency:

• <1μs

Switching Capacity:

• 2.56Tbps

Forwarding Capacity:

• 1440Mpps

Buffer (byte):

• 16MB

AC-Input Voltage:

• Rated voltage range: 100V to 240V AC, 50/60Hz
• Maximum voltage range: 90V to 290V AC

DC-Input Voltage:

• Rated voltage range: -38.4V to -72V DC

Power Module Slot:

• 4

Fan Tray Slot:

• Two hot-swappable fan

Air Flow Direction:

• From front to rear or from rear to front

Static Power Consumption:

• Dual AC: 135W
• Three AC: 150W
• Four AC: 165W
• Dual DC: 131W
• Three DC: 145W
• Four DC: 155W

Typical Power Consumption:

• Dual AC: 827W
• Three AC: 837W
• Four AC: 856W
• Dual DC: 823W
• Three DC: 825W
• Four DC: 828W

Maximum Heat Consumption (BTU/hour):

• Dual AC: 2822W
• Three AC: 2856W
• Four AC: 2920W
• Dual DC: 2808W
• Three DC: 2815W
• Four DC: 2825W

Operating Temperature:

• 0℃ to 45℃ (32℉ to 113℉)

Operating Humidity:

• 5% to 95%, non-condensing

MTBF (Mean Time Between Failures):

• 45.96 years

MTTR (Mean Time to Repair):

• 1 hour
