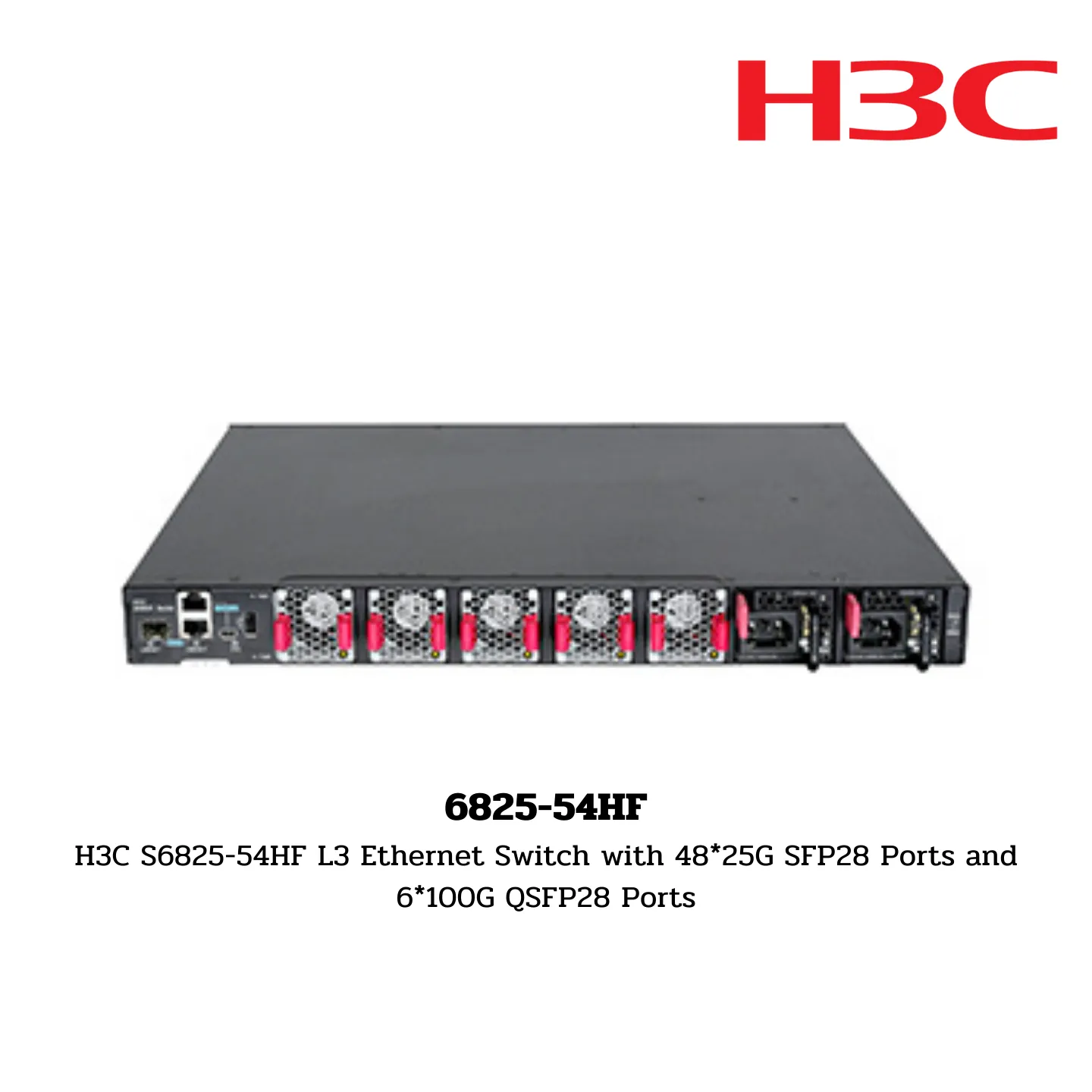

S6825-54HF
L3 Ethernet Switch with 48*25G SFP28 Ports and 6*100G QSFP28 Ports
Hardware Specifications
Dimensions (H × W × D):
- 44 × 440 × 400 mm
Weight:
- ≤ 10 kg (22.05 lb)
Serial Console Port:
- 1
Out-of-Band Management Port:
- One GE copper port and one GE fiber port
Mini USB Console Port:
- 1
USB Port:
- 1
QSFP28 Port:
- 6
SFP28 Port:
- 48
CPU:
- 2.2GHz @ 4 Core
Flash/SDRAM:
- 4GB/4G
Latency:
- <1μs
Switching Capacity:
- 3.6 Tbps
Forwarding Capacity:
- 1001.7 Mpps
Buffer (byte):
- 32M
AC-Input Voltage:
- 90V AC to 290V AC
DC-Input Voltage:
- -36V DC to -72V DC
Power Module Slot:
- 2
Fan Tray Slot:
- 5 Hot-swappable fans
Air Flow Direction:
- Front to rear or rear to front
Static Power Consumption:
- Single AC: 78W
- Dual AC: 87W
- Single DC: 79W
- Dual DC: 88W
Typical Power Consumption:
- Single AC: 223W
- Dual AC: 228W
- Single DC: 224W
- Dual DC: 227W
Maximum Heat Consumption (BTU/hour):
- Single AC: 761
- Dual AC: 778
- Single DC: 764
- Dual DC: 775
MTBF (Mean Time Between Failures):
- 35.4 years
MTTR (Mean Time to Repair):
- 1 hour
Operating Temperature:
- 0°C to 45°C (32°F to 113°F)
Operating Humidity (non-condensing):
- 5% to 95%
