S6850-2C H3C S6800 Series Switch

S6850-2C

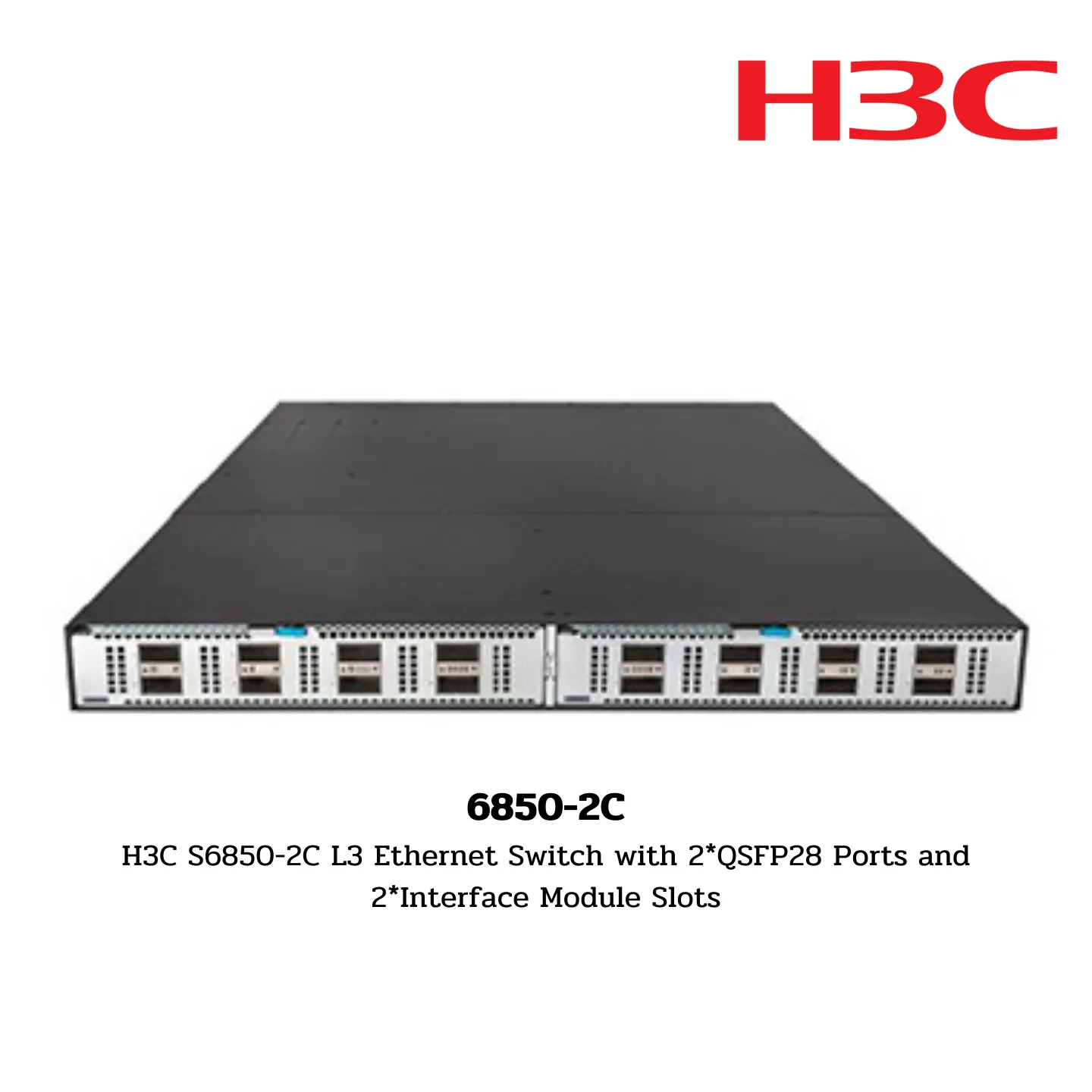

H3C S6850-2C L3 Ethernet Switch with 2*QSFP28 Ports and 2*Interface Module Slots

Hardware Specifications

Dimensions (H × W × D):

• 44.2 × 440 × 660 mm (1.74 × 17.32 × 18.11 in)

Weight:

• ≤ 16 kg (35.27 lb)

Serial Console Port:

• 1

Out-of-Band Management Port:

• One GE copper port and one GE fiber port

Mini USB Console Port:

• 1

USB Port:

• 1

QSFP28 Port:

• 2

SFP28 Port:

• None

SFP Port:

• None

Expansion Slot:

• 2

CPU:

• 2.2GHz @ 4 Core

Flash/SDRAM:

• 4GB/8GB

Latency:

• <1μs

Switching Capacity:

• 3.6 Tbps

Forwarding Capacity:

• 2024 Mpps

Buffer (byte):

• 32MB

AC-Input Voltage:

• 90V AC to 264V AC

DC-Input Voltage:

• -40V DC to -72V DC

Power Module Slot:

• 2

Fan Tray Slot:

• 5 Hot-swappable fans, fan speed adjustable and wind invertible

Air Flow Direction:

• From front to rear or from rear to front

Typical Power Consumption (Fully configured with copper cables, at 50% load):

• With two LSWM18CQ modules: 282W
• With two LSWM18CQMSEC modules: 326W
• With two LSWM116Q modules: 260W
• With two LSWM18QC modules: 230W
• With two LSWM124XG2Q modules: 286W
• With two LSWM124XGT2Q modules: 348W
• With two LSWM124XG2QFC modules: 286W
• With two LSWM124XG2QL modules: 242W
• With two LSWM124TG2H modules: 282W
• With two LSWM116FC modules: 260W

Maximum Power Consumption (Fully configured with transceiver modules, at 100% load):

• With two LSWM18CQ modules: 421W
• With two LSWM18CQMSEC modules: 451W
• With two LSWM116Q modules: 385W
• With two LSWM18QC modules: 325W
• With two LSWM124XG2Q modules: 385W
• With two LSWM124XGT2Q modules: 511W
• With two LSWM124XG2QFC modules: 385W
• With two LSWM124XG2QL modules: 337W
• With two LSWM124TG2H modules: 421W
• With two LSWM116FC modules: 385W

Maximum Thermal Consumption:

• With two LSWM18CQ modules: 1436 BTU/hr
• With two LSWM18CQMSEC modules: 1539 BTU/hr
• With two LSWM116Q modules: 1314 BTU/hr
• With two LSWM18QC modules: 1109 BTU/hr
• With two LSWM124XG2Q modules: 1314 BTU/hr
• With two LSWM124XGT2Q modules: 1744 BTU/hr
• With two LSWM124XG2QFC modules: 1314 BTU/hr
• With two LSWM124XG2QL modules: 1150 BTU/hr
• With two LSWM124TG2H modules: 1436 BTU/hr
• With two LSWM116FC modules: 1314 BTU/hr

Operating Temperature:

• 0-45℃ (32°F to 113°F)

Operating Humidity:

• 5% to 95%, non-condensing

MTBF (Mean Time Between Failures):

• 34 years

MTTR (Mean Time to Repair):

• 1 hour
