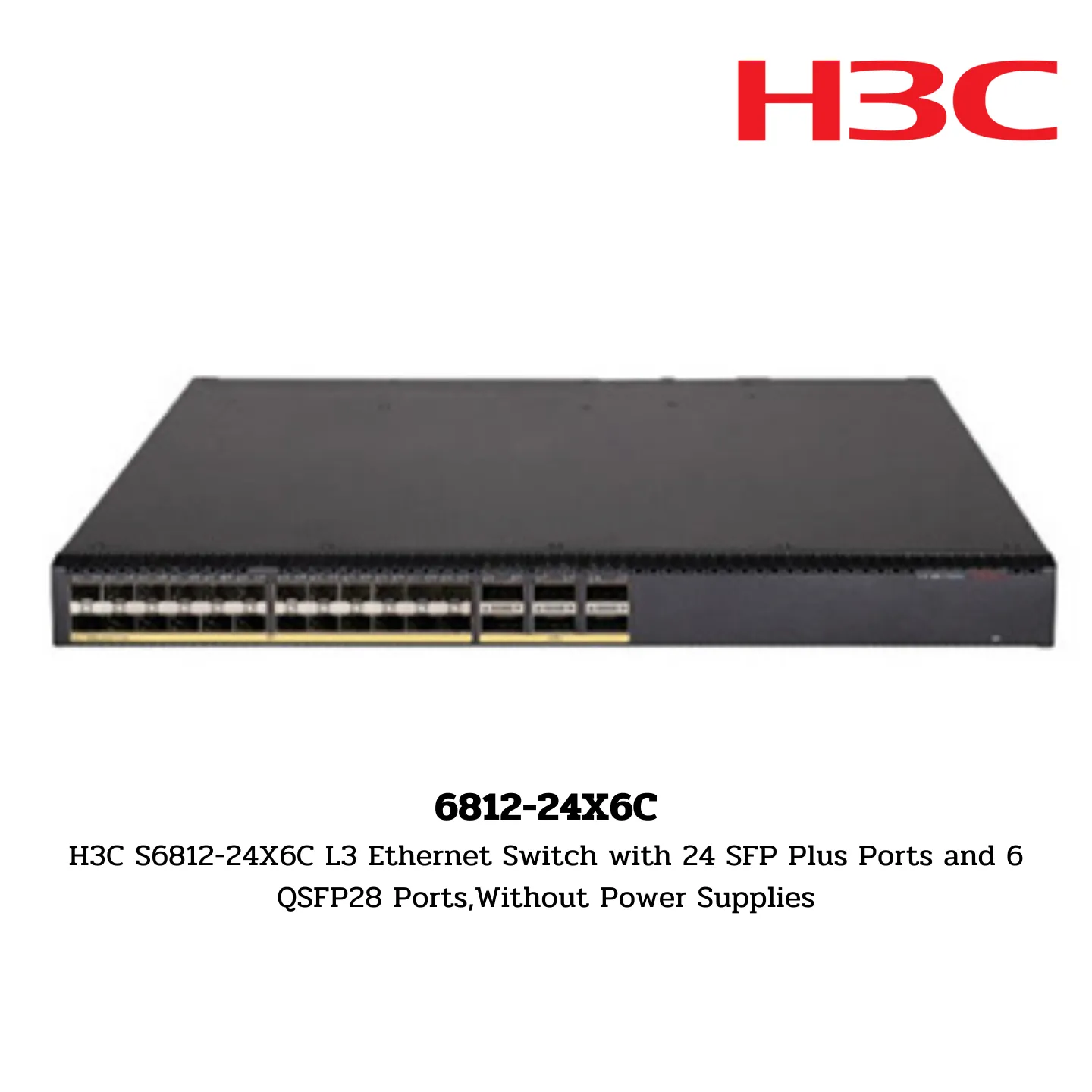

Switch H3C รุ่น 6812-24X6C

6812-24X6C
L3 Ethernet Switch with 24 SFP Plus Ports and 6 QSFP28 Ports,Without Power Supplies

Hardware Specifications

Dimensions (H × W × D):

• 44 × 440 × 360 mm (1.72 × 17.32 × 14.17 in)

Weight:

• ≤ 5.5 kg (12.13 lb)

Serial Console Port:

• 1

Out-of-Band Management Port:

• 1

SFP+ Port:

• 24

QSFP28 Port:

• 6

CPU:

• 2000MHz @ 4 Core

Flash/SDRAM:

• 1GB/4GB

Latency:

• <1μs

Switching Capacity:

• 1680Gbps

Forwarding Capacity:

• 600Mpps

Buffer (byte):

• 10MB

AC-Input Voltage:

• 90V AC to 264V AC

DC-Input Voltage:

• -36V DC to -72V DC

Power Module Slot:

• 2

Fan Tray Slot:

• 3 Hot-swappable fans, fan speed adjustable and wind invertible

Air Flow Direction:

• Front to rear or rear to front

Minimum Power Consumption:

• Single AC: 29W
• Dual AC: 35W

Maximum Power Consumption:

• Single AC: 131W
• Dual AC: 134W

Maximum Heat Consumption (BTU/hour):

• Single AC: 447
• Dual AC: 457

MTBF (Mean Time Between Failures):

• 63.4 years

MTTR (Mean Time to Repair):

• 1 hour

Operating Temperature:

• 0°C to 45°C (32°F to 113°F)

Operating Humidity (non-condensing):

• 5% to 95%
