S6805-54HF-H1 H3C S6800 Series Switch

S6805-54HF-H1

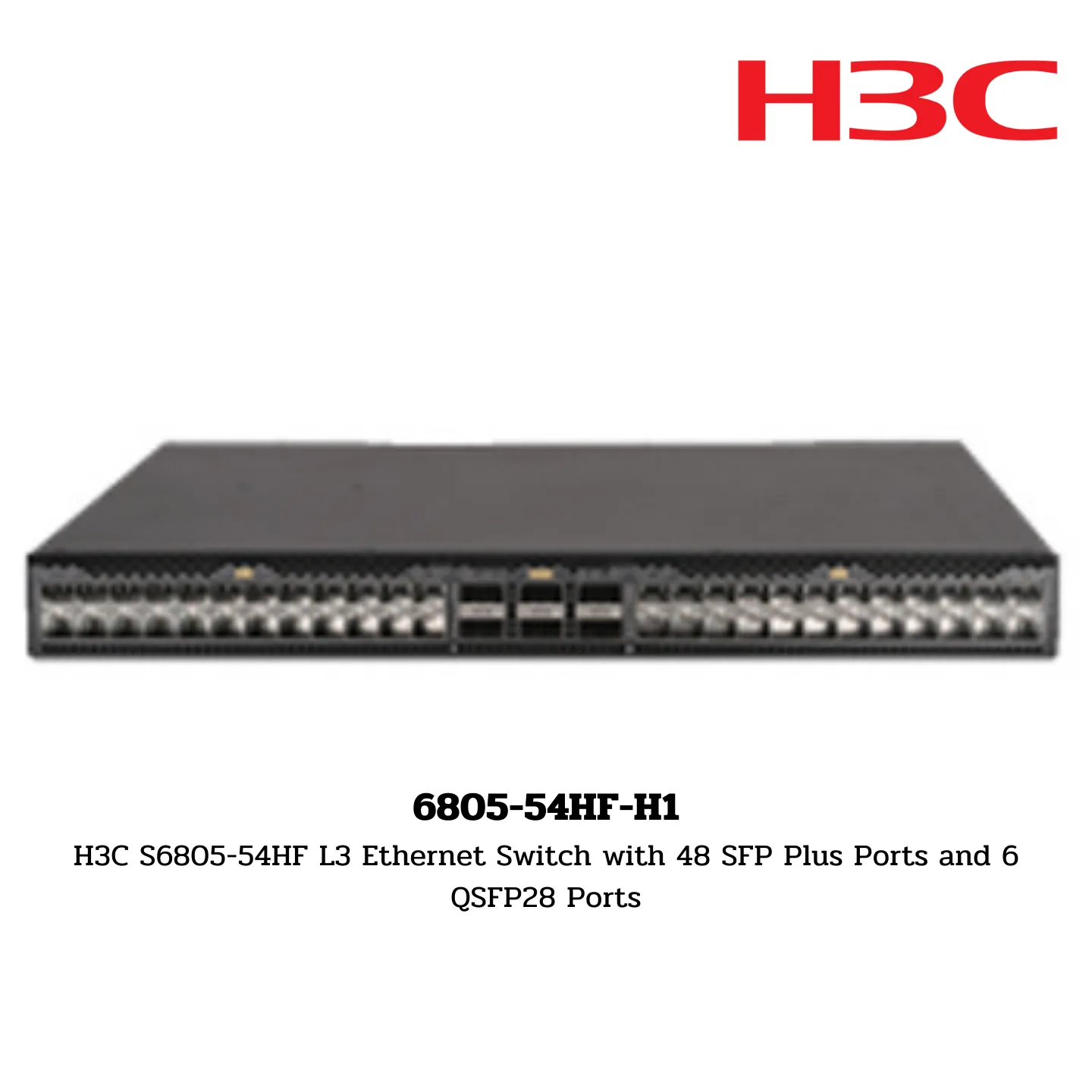

H3C S6805-54HF L3 Ethernet Switch with 48 SFP Plus Ports and 6 QSFP28 Ports

Hardware Specifications

Dimensions (H × W × D):

• 44 × 440 × 400 mm (1.74 × 17.32 × 15.74 in)

Weight:

• ≤ 10 kg (22.04 lb)

Serial Console Port:

• 1

Out-of-Band Management Port:

• One GE copper port and one GE fiber port

Mini USB Console Port:

• 1

USB Port:

• 1

QSFP28 Port:

• 6

SFP+ Port:

• 48

10G Base-T Port:

• 48

Expansion Slot:

• N/A

CPU:

• 2.4 GHz @ 4 Cores

Flash/SDRAM:

• 4G/8G

Latency:

• <1μs (64 byte)

Switching Capacity:

• 2.16 Tbps

Forwarding Capacity:

• 1001.7 Mpps

Buffer (byte):

• 32M

AC-Input Voltage:

• 90V AC to 290V AC

DC-Input Voltage:

• –36V DC to –72V DC

Power Module Slot:

• 2

Fan Tray Slot:

• 5 Hot-swappable fan, fan speed adjustable and wind invertible

Air Flow Direction:

• From front to rear or from rear to front

Typical Power Consumption:

• AC: 208W
• Double AC: 213W
• DC: 207W
• Double DC: 217W

Maximum Heat Consumption (BTU/hour):

• AC: 710
• Double AC: 727
• DC: 706
• Double DC: 740

MTBF (Mean Time Between Failures):

• 35.4 years

MTTR (Mean Time to Repair):

• 1 hour

Operating Temperature:

• 0°C to 45°C (32°F to 113°F)

Operating Humidity (noncondensing):

• 5% to 95%
