S6850-56HF-H3 H3C S6800 Series Switch

S6850-56HF-H3

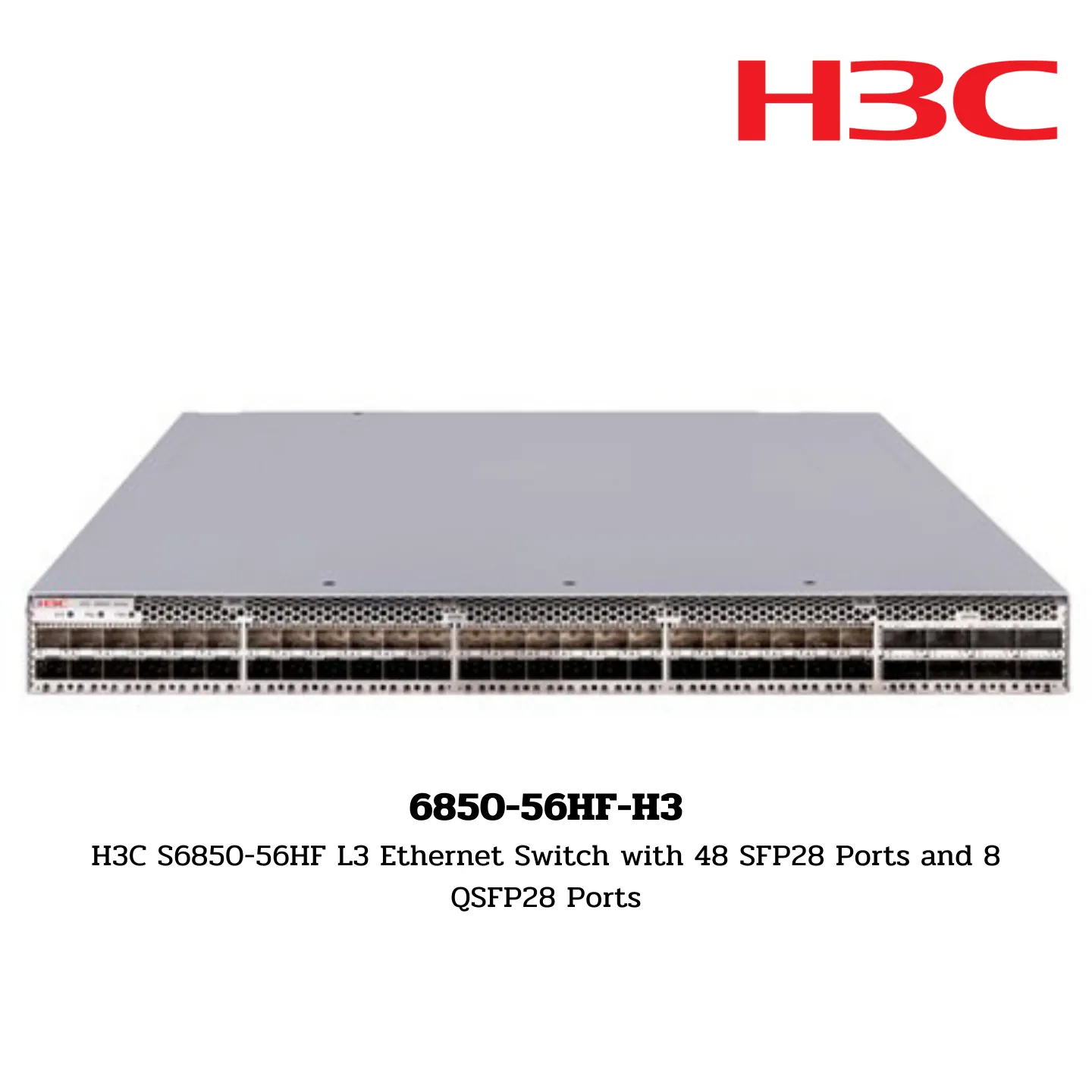

H3C S6850-56HF L3 Ethernet Switch with 48 SFP28 Ports and 8 QSFP28 Ports

Hardware Specifications

Dimensions (H × W × D):

• Without package: 44 × 440 × 400 mm (1.73 × 17.32 × 15.75 in)
• With package: 150 × 658 × 556 mm (5.91 × 25.91 × 21.89 in)

Weight:

• ≤ 10 kg (22.05 lb)

Serial Console Port:

• 1

Out-of-Band Management Port:

• 1 × copper management Ethernet port

Mini USB Console Port:

• None

USB Port:

• 1

QSFP28 Port:

• 8

SFP28 Port:

• 48

SFP Port:

• None

Expansion Slot:

• None

CPU:

• 2.2GHz @ 4 Core

Flash/SDRAM:

• 4GB/8GB

Latency:

• <1μs

Switching Capacity:

• 4 Tbps

Forwarding Capacity:

• 2024 Mpps

Buffer (byte):

• 32M

AC-Input Voltage:

• 90V AC to 264V AC

DC-Input Voltage:

• 190V DC to 310V DC

Power Module Slot:

• 2

Fan Tray Slot:

• 4 Hot-swappable fans, fan speed adjustable and wind invertible

Air Flow Direction:

• From front to rear or from rear to front

Typical Power Consumption (Fully configured with copper cables, at 50% load):

• Single AC input: 143W
• Dual AC inputs: 150W

Maximum Power Consumption (Fully configured with transceiver modules, at 100% load):

• Single AC input: 424W
• Dual AC inputs: 429W

Maximum Thermal Consumption:

• 1464 BTU/hr

Operating Temperature:

• 0-45℃ (32°F to 113°F)

Operating Humidity:

• 5% to 95%, non-condensing

MTBF (Mean Time Between Failures):

• 78.7 years

MTTR (Mean Time to Repair):

• 1 hour
