APC Metered-by-Outlet with Switching Rack PDU รุ่น AP8659

AP8659

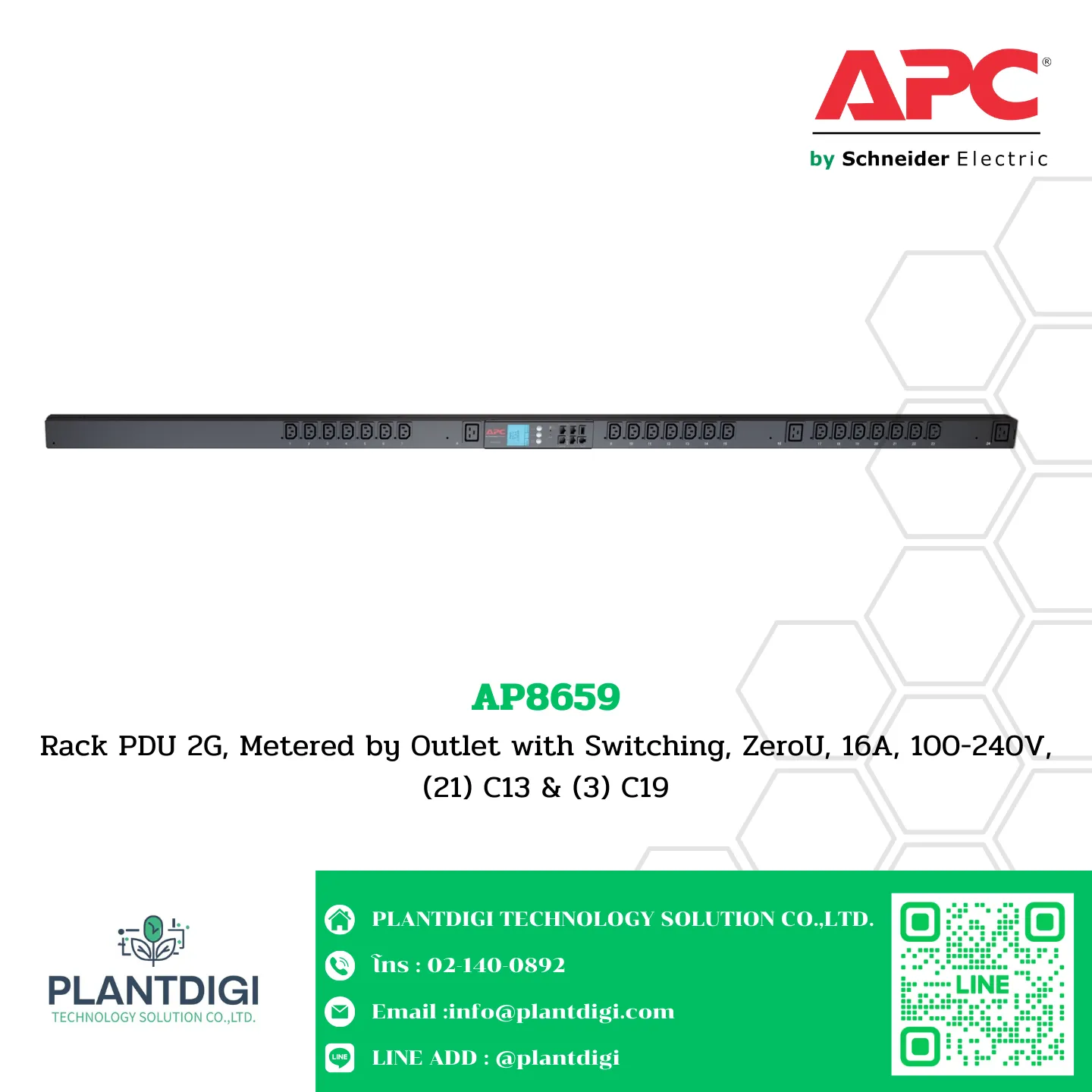

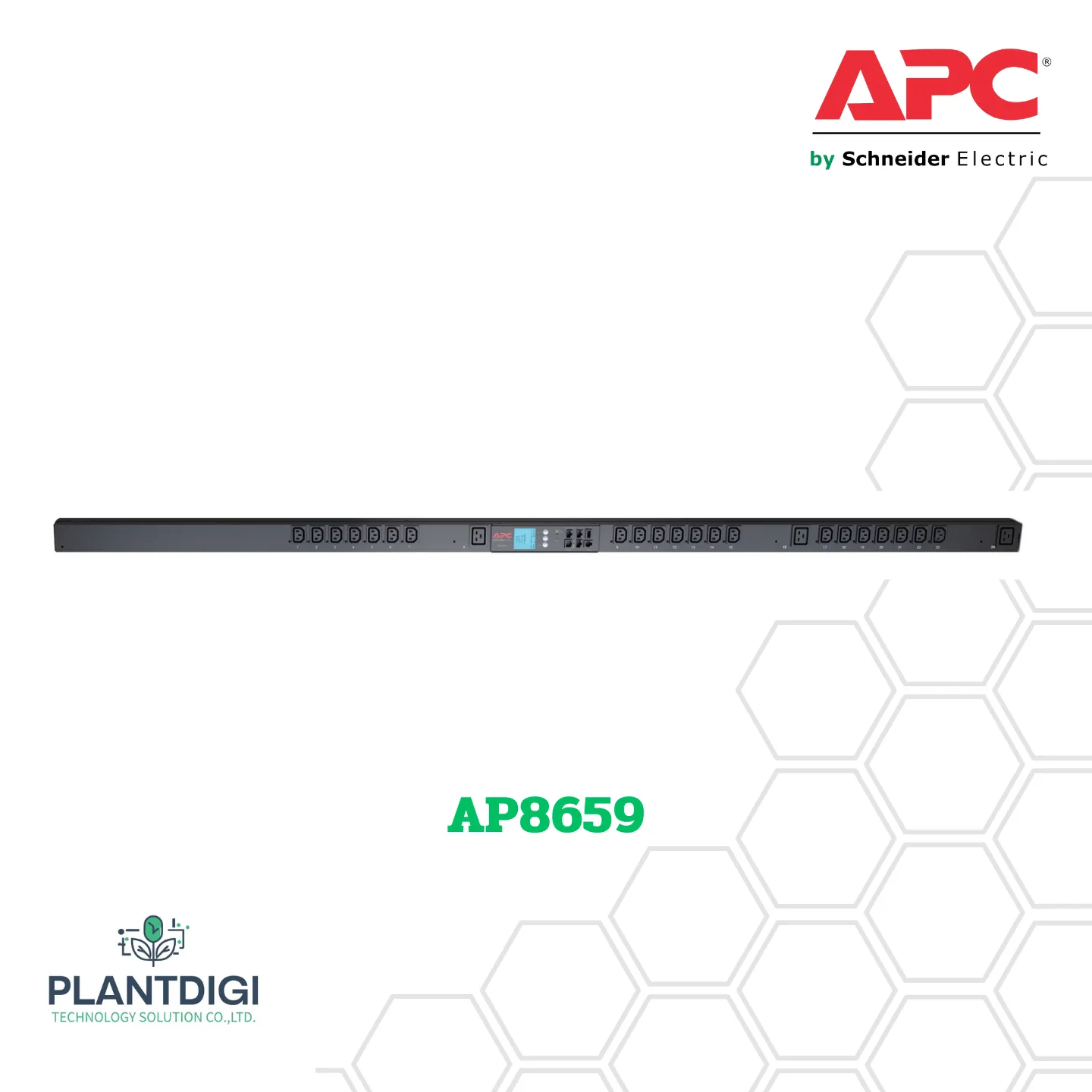

Rack PDU 2G, Metered by Outlet with Switching, ZeroU, 16A, 100-240V, (21) C13 & (3) C19

———
Overview
———
Presentation: APC Metered by Outlet with Switching Rack Power Distribution Units (PDUs) enable advanced, user-customizable power control and individual outlet power metering. Remote outlet level controls allow power on/off functionality for power recycling to reboot locked-up equipment and to avoid unauthorized use of individual outlets. Power sequencing delays allow users to define the order in which to power up or down attached equipment. Avoid circuit overload during power recovery and extend uptime of critical equipment by prioritizing the load shedding. Current metering provides real-time remote monitoring of connected loads. Switched Rack PDUs include real power monitoring, a temperature/humidity sensor port, and locking IEC receptacles. User-defined alarms warn of potential circuit overloads before critical IT failures occur. Users can access, configure, and control Switched rack PDUs through secure Web, SNMP, or Telnet Interfaces and is complimented by APC Centralized Management platforms using InfraStruxure Central, Capacity Manager and Change Manager.
Lead time: Usually in Stock
—–
Main
—–
Colour: Black
Product or component type: PDU
PDU type: Switched metered outlet
Provided equipment: CAN port terminator, Installation guide, Rack mounting brackets, Safety guide, Serial configuration cable
————–
Complementary
————–
Input Voltage: 200 V, 208 V, 230 V
Height: 182.9 cm
Width: 5.6 cm
Output Voltage: 100 V, 200 V, 208 V, 230 V
Depth: 5.1 cm
Net weight: 6.09 kg
mounting location: Side
Mounting preference: No preference
Input Plug Type: IEC 60320 C20
mounting mode: Rack-mounted
Rack units: 0U
USB compatible: No
mounting position: Vertical
[In] rated current: 16 A
Permissible voltage: 100…240 V
Input current limits: 20 A
Load capacity: 3300 VA
Network frequency: 50/60 Hz
Outlet type and quantity: 21 IEC 60320 C13, 3 IEC 60320 C19
————
Environment
————
product certifications: PSE, UL listed, VCCI class A, VDE
Standards: EN 55022 class A, EN 55024, EN 61000-3-2, EN 61000-3-3, FCC part 15 class A, ICES-003
Ambient air temperature for operation: -5…60 °C
Relative humidity: 5…95 %
Operating altitude: 0…10000 ft
Ambient air temperature for storage: -25…65 °C
Storage Relative Humidity: 5…95 %
Storage altitude: 0.0000000000…15240.0000000000 m
————–
Packing Units
————–
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 203.8 cm
Package 1 Width: 16.2 cm
Package 1 Length: 11.7 cm
Package 1 Weight: 8.342 kg
———————
Contractual warranty
———————
Warranty: 2 years repair or replace
