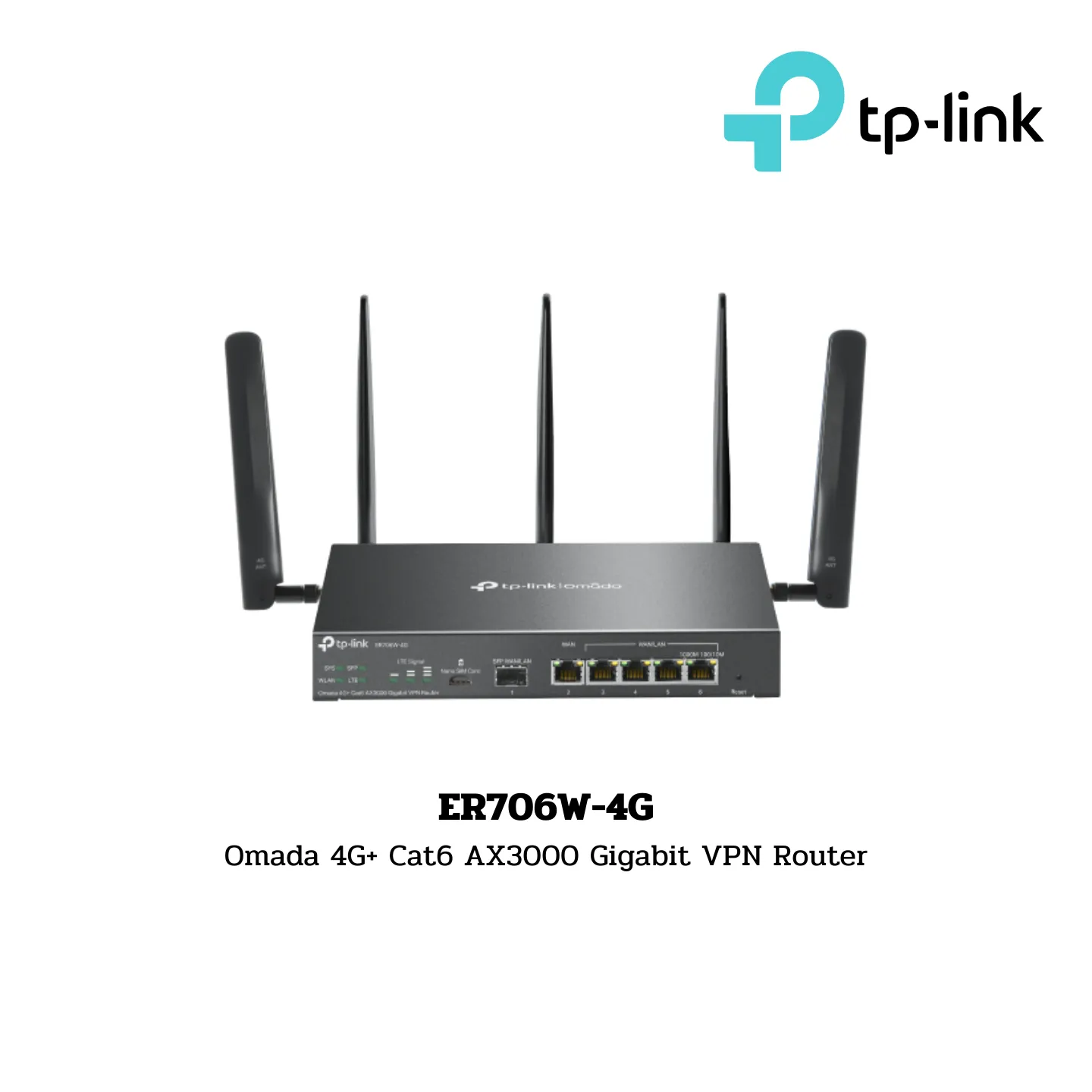

TP-Link Business Router รุ่น ER706W-4G Omada 4G+ Cat6 AX3000 Gigabit VPN Router

ER706W-4G
Omada 4G+ Cat6 AX3000 Gigabit VPN Router

Brand:

• TP-Link

Ports:

• 1× Gigabit SFP WAN/LAN Port
• 1× Gigabit RJ45 WAN Port
• 4× Gigabit WAN/LAN RJ45 Ports
• 1 Nano SIM slot (4G+ Cat6)

Speed:

• 574 Mbps at 2.4 GHz
• 2402 Mbps at 5 GHz (HE160) Wi-Fi Speed
• 300 Mbps Download LTE Speed

Feature:

• Integration with Omada SDN Controller
• Support SSL VPN, OpenVPN, Wireguard/IPsec/PPTP/L2TP/L2TP over IPSec VPN
• 4G+ Cat6 LTE
• 2× Detachable LTE Antennas
• 3× Detachable Wi-Fi Antennas
• 160MHz Supported, OFDMA, MU-MIMO, Beamforming
• Load Balance, Link Backup
• Policy-based Firewall, Static Routing, Policy Routing, Multi-net DHCP, VLAN, stateful ACL, mDNS Repeater, Bridge VLAN

4G:

Network Type: LTE Band of EU:

• 4G LTE-FDD: B1/B3/B5/B7/B8/B20/B28/B32 (2100/1800/850/2600/900/800/700/1450 MHz)
• 4G LTE-TDD: B38/B40/B41 (2600/2300/2500 MHz)
• 3G DC-HSDPA/HSPA+/HSDPA/HSUPA/WCDMA: B1/B3/B5/B8 (2100/1800/850/900 MHz)

Carrier Aggregation:

• B1+B1/B3/B5/B7/B8/B20/B28/B38/B40/B41
• B3+B3/B5/B7/B8/B20/B28/B38/B40/B41
• B5+B5/B7/B38/B40/B41
• B7+B7/B8/B20/B28/B32
• B8+B32/B38/B40/B41
• B20+B32/B38/B40
• B28+B32/B38/B40/B41
• B38+B38
• B40+B40
• B41+B41

SIM Type: 1× Nano SIM Card

Frequency:

• Downlink: 300 Mbps
• Uplink: 50 Mbps

Security:

• Access Control: Source/Destination IP Based Access Control

Filtering:

• Web Group Filtering†
• URL Filtering
• Web Security†

ARP Inspection:

• Sending GARP Packets
• ARP Scanning†
• IP-MAC Binding

Attack Defense:

• TCP/UDP/ICMP Flood Defense
• Block TCP Scan (Stealth FIN/Xmas/Null)
• Block Ping from WAN

Hardware Features:

Interface:

• 1 Gigabit SFP WAN/LAN Port
• 1 Gigabit WAN Port
• 4 Gigabit LAN/WAN Ports

Network Media:

• 10BASE-T: UTP category 3, 4, 5 cable (Max 100 m) EIA/TIA-568 100Ω STP (Max 100 m)
• 100BASE-TX: UTP category 5, 5e cable (Max 100 m) EIA/TIA-568 100Ω STP (Max 100 m)
• 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100 m)

Button: Reset Button

Power Supply: 12VDC / 2A Power Adapter

Wi-Fi Frequency & Signal Rate:

• 2.4 GHz: 574 Mbps
• 5 GHz: 2402 Mbps (HE160)

Flash: 128 MB NAND

DRAM: 512 MB DDR4

LED:

• SYS, WLAN, SFP, LTE Signal, WAN (1000M Link/Act, 100/10M Link/Act), WAN/LAN (1000M Link/Act, 100/10M Link/Act)

Dimensions (W x D x H): 8.9 × 5.2 × 1.4 in (226 × 131 × 35 mm) (Antenna dimensions not included)

Antenna:

• Wi-Fi: Three 5GHz 5.5dBi & 2.4GHz 4.5dBi dual-band detachable antennas
• LTE: Two 4.0dBi omnidirectional detachable antennas

Mounting: Desktop/Wall-Mounting

Max Power Consumption: EU: 17.3W

Performance:

GRE:

• Unencrypted: 545.3 Mbps
• Encrypted: 282.6 Mbps

WireGuard VPN: 387.7 Mbps

Concurrent Session: 150,000

New Sessions / Second: 5,100

NAT (Static IP): 947.1 Mbps / 940.1 Mbps

NAT (DHCP): 949.2 Mbps / 941.1 Mbps

NAT (PPPoE): 942.6 Mbps / 941.1 Mbps

NAT (L2TP): 875.4 Mbps / 892.0 Mbps

NAT (PPTP): 881.2 Mbps / 895.8 Mbps

IPsec VPN Throughput:

• ESP-SHA1-AES256: 652.2 Mbps
• ESP-SHA256-AES256: 654.4 Mbps
• ESP-SHA384-AES256: 646.5 Mbps
• ESP-SHA512-AES256: 670.5 Mbps

OpenVPN: 115.5 Mbps

L2TP VPN Throughput:

• Unencrypted: 990.0 Mbps
• Encrypted: 475.0 Mbps

PPTP VPN Throughput:

• Unencrypted: 1177.9 Mbps
• Encrypted: 177.4 Mbps

SSL VPN Throughput: 122.5 Mbps

66 Byte Packet forwarding rate:

• 1,453,489 pps / 1,453,488 pps

1,518 Byte Packet forwarding rate:

• 81,274 pps / 91,275 pps

Wireless Features:

Advanced Functions:

• Seamless Roaming
• Mesh (with EAP that supports Mesh)
• OFDMA
• Beamforming
• MU-MIMO
• Rate Limit: Based on SSID/Client
• Airtime Fairness

Wireless Encryption: WPA/WPA2/WPA3 Personal, WPA/WPA2/WPA3 Enterprise

Multiple SSIDs: 16 in total (8 per radio)

Guest Network: Support

Basic Functions:

WAN Connection Type:

• Static IP
• Dynamic IP
• PPPoE (supports MRU Configuration)
• PPTP
• L2TP

MAC Clone: Modify WAN Address

DHCP:

• DHCP Server
• DHCPv6 PD Server (only in Standalone Mode)
• DHCP Options Customization
• DHCP Address Reservation
• Multi-IP Interfaces
• Multi-Net DHCP

SMS: Receive / Send SMS

IPv6: StaticIP / SLAAC / DHCPv6 / PPPoE / 6to4 Tunnel / PassThrough / Non-Address mode

VLAN: 802.1Q VLAN

IPTV: IGMP v2/v3 Proxy, Custom Mode, Bridge Mode

Advanced Functions:

ACL: IP/Port/Protocol/Domain Name Filtering

Advanced Routing:

• Static Routing
• Policy Routing
• RIP†
• OSPF†

Bandwidth Control: IP-Based Bandwidth Control

Load Balance:

• Intelligent Load Balance
• Application Optimized Routing
• Link Backup (Timing, Failover)
• Online Detection

NAT:

• One-to-One NAT
• Multi-Net NAT
• Virtual Server
• Port Triggering†
• NAT-DMZ
• FTP/H.323/SIP/IPSec/PPTP ALG
• UPnP

Session Limit: IP-Based Session Limit

VPN:

GRE: Only in Standalone Mode

SSL VPN: 50 Tunnels

IPsec VPN:

• 100 IPSec VPN Tunnels
• LAN-to-LAN, Client-to-LAN
• Main, Aggressive Negotiation Mode
• DES, 3DES, AES128, AES192, AES256 Encryption Algorithm
• IPsec Failover
• IKE v1/v2
• MD5, SHA1, SHA2-384 and SHA2-512 Authentication Algorithm
• NAT Traversal (NAT-T)
• Dead Peer Detection (DPD)
• Perfect Forward Secrecy (PFS)

PPTP VPN:

• PPTP VPN Server
• PPTP VPN Client (10)△
• 50 Tunnels
• PPTP with MPPE Encryption

L2TP VPN:

• L2TP VPN Server
• L2TP VPN Client (10)△
• 50 Tunnels
• L2TP over IPSec

OpenVPN:

• OpenVPN Server
• OpenVPN Client (5)△
• 55 OpenVPN Tunnels
• “Certificate + Account” Mode
• Full Mode

Authentication:

Web Authentication:

• No Authentication
• Simple Password§
• Hotspot (Local User / Voucher§ / SMS§ / Radius§)
• External Radius Server
• External Portal Server§
• LDAP

Management:

Omada App: Yes

Centralized Management:

• Omada Cloud-Based Controller
• Omada Hardware Controller (OC300)
• Omada Hardware Controller (OC200)
• Omada Software Controller

Cloud Access: Yes

Service:

• Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe, DDNS Customization)

Maintenance:

• Web Management Interface
• Remote Management
• Export & Import Configuration
• SNMP v1/v2c/v3
• Diagnostics (Ping & Traceroute)†
• NTP Synchronize†
• Port Mirroring
• CLI (only in Standalone Mode)
• Syslog Support
• Zero-Touch Provisioning: Requires the use of Omada Cloud-Based Controller

Management Features:

• Automatic Device Discovery
• Intelligent Network Monitoring
• Abnormal Event Warnings
• Unified Configuration
• Reboot Schedule
• Captive Portal Configuration

Others:

Certification: CE, FCC, RoHS

Package Contents:

• ER706W-4G
• Power Adapter
• Quick Installation Guide

System Requirements:

• Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10/11
• MAC OS, NetWare, UNIX or Linux

Environment:

• Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F)
• Storage Temperature: -40 °C to 70 °C (-40 °F to 158 °F)
• Operating Humidity: 10% to 90% non-condensing
• Storage Humidity: 5% to 90% non-condensing
