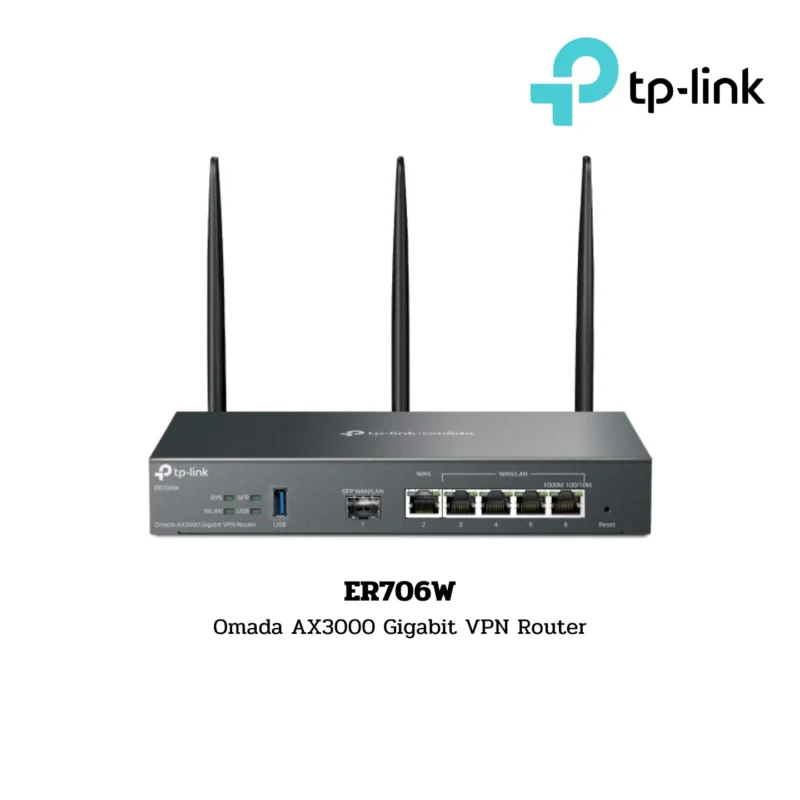

TP-Link Business Router รุ่น ER706W Omada AX3000 Gigabit VPN Router

ER706W
Omada AX3000 Gigabit VPN Router

Brand:

• TP-Link

Ports:

• 1× Gigabit SFP WAN/LAN Port
• 1× Gigabit RJ45 WAN Port
• 4× Gigabit WAN/LAN RJ45 Ports
• 1× USB 3.0

Speed:

• 574 Mbps at 2.4 GHz
• 2402 Mbps at 5 GHz (HE160)

Feature:

• Integration with Omada SDN Controller
• Support for SSL VPN, OpenVPN, Wireguard/IPsec/PPTP/L2TP/L2TP over IPSec VPN
• 3× Detachable Antennas
• 160MHz Supported, OFDMA, MU-MIMO, Beamforming
• Load Balance, Link Backup, 4G LTE Backup with USB Dongle
• Policy-based Firewall, Static Routing, Policy Routing, Multi-net DHCP, VLAN, stateful ACL, mDNS Repeater, Bridge VLAN

Security:

DPI: Application control via DPI / Updated app library

IDS/IPS: Signature-based IPS/IDS threat detection

Access Control: Source/Destination IP Based Access Control

Filtering:

• Web Group Filtering†
• URL Filtering
• Web Security†

ARP Inspection:

• Sending GARP Packets
• ARP Scanning†
• IP-MAC Binding

Attack Defense:

• TCP/UDP/ICMP Flood Defense
• Block TCP Scan (Stealth FIN/Xmas/Null)
• Block Ping from WAN

Hardware Features:

Interface:

• 1 Gigabit SFP WAN/LAN Port
• 1 Gigabit WAN Port
• 4 Gigabit LAN/WAN Ports
• 1 USB 3.0 (supports USB LTE dongle and USB Storage)

Button: Reset Button

Power Supply: 12VDC / 2A Power Adapter

Wi-Fi Frequency & Signal Rate:

• 2.4 GHz: 574 Mbps
• 5 GHz: 2402 Mbps (HE160)

Flash: 128 MB NAND

DRAM: 512 MB DDR4

Dimensions (W x D x H): 8.9 × 5.2 × 1.4 in (226 × 131 × 35 mm) (Antenna dimensions not included)

Antenna:

• 2.4 GHz: 2× 3 dBi dual-band detachable antennas
• 5 GHz: 3× 4.5 dBi dual-band detachable antennas

Mounting: Desktop/Wall-mounting

Max Power Consumption:

• EU: 16.8W (with USB 3.0 connected), 11.8W (without USB 3.0 connected)
• US: 22.7W (with USB 3.0 connected) 18.2W (without USB 3.0 connected)

Performance:

IPS Throughput:

• TCP: 229 Mbps
• UDP: 188 Mbps

DPI Throughput:

• TCP: 933 Mbps
• UDP: 927 Mbps

GRE:

• Unencrypted: 624.2 Mbps
• Encrypted: 301.5 Mbps

WireGuard VPN: 393.5 Mbps

Concurrent Sessions: 150,000 New Sessions / Second: 5,100

NAT (Static IP): 937.2 Mbps / 936.1 Mbps

NAT (DHCP): 945.8 Mbps / 940.6 Mbps

NAT (PPPoE): 942.9 Mbps / 942.9 Mbps

NAT (L2TP): 837.4 Mbps / 881.5 Mbps

NAT (PPTP): 803.0 Mbps / 910.5 Mbps

IPsec VPN Throughput:

• ESP-SHA1-AES256: 646.9 Mbps
• ESP-SHA256-AES256: 642.8 Mbps
• ESP-SHA384-AES256: 648.9 Mbps
• ESP-SHA512-AES256: 658.4 Mbps

OpenVPN: 129.3 Mbps

L2TP VPN Throughput:

• Unencrypted: 1034.0 Mbps
• Encrypted: 570.0 Mbps

PPTP VPN Throughput:

• Unencrypted: 1165.0 Mbps
• Encrypted: 209.0 Mbps

SSL VPN Throughput: 126.7 Mbps

66 Byte Packet forwarding rate:

• 1,453,489 pps / 1,453,488 pps

1,518 Byte Packet forwarding rate:

• 81,274 pps / 91,275 pps

Wireless Features:

Advanced Functions:

• Seamless Roaming
• Mesh (with EAP that supports Mesh)
• OFDMA
• Beamforming
• MU-MIMO

Wireless Encryption: WPA/WPA2/WPA3 Personal, WPA/WPA2/WPA3 Enterprise

Guest Network: Support

Basic Functions:

WAN Connection Type:

• Static IP
• Dynamic IP
• PPPoE (supports MRU Configuration)
• PPTP
• L2TP

MAC Clone: Modify WAN Address

DHCP:

• DHCP Server
• DHCPv6 PD Server (only in Standalone Mode)
• DHCP Options Customization
• DHCP Address Reservation
• Multi-IP Interfaces
• Multi-Net DHCP

IPv6: StaticIP / SLAAC / DHCPv6 / PPPoE / 6to4 Tunnel / PassThrough / Non-Address mode

VLAN: 802.1Q VLAN

IPTV: IGMP v2/v3 Proxy, Custom Mode, Bridge Mode

Advanced Functions:

ACL: IP/Port/Protocol/Domain Name Filtering

Advanced Routing:

• Static Routing
• Policy Routing
• RIP†
• OSPF†

Bandwidth Control: IP-Based Bandwidth Control

Load Balance:

• Intelligent Load Balance
• Application Optimized Routing
• Link Backup (Timing, Failover)
• Online Detection

NAT:

• One-to-One NAT
• Multi-Net NAT
• Port Forwarding
• Port Triggering†
• NAT-DMZ
• FTP/H.323/SIP/IPSec/PPTP ALG
• UPnP

Session Limit: IP-Based Session Limit

VPN:

SSL VPN: 50 Tunnels

IPsec VPN:

• 100 IPSec VPN Tunnels
• LAN-to-LAN, Client-to-LAN
• Main, Aggressive Negotiation Mode
• DES, 3DES, AES128, AES192, AES256 Encryption Algorithm
• IPsec Failover
• IKE v1/v2
• MD5, SHA1, SHA2-384 and SHA2-512 Authentication Algorithm
• NAT Traversal (NAT-T)
• Dead Peer Detection (DPD)
• Perfect Forward Secrecy (PFS)

PPTP VPN:

• PPTP VPN Server
• PPTP VPN Client (10)△
• 50 Tunnels
• PPTP with MPPE Encryption

L2TP VPN:

• L2TP VPN Server
• L2TP VPN Client (10)△
• 50 Tunnels
• L2TP over IPSec

OpenVPN:

• OpenVPN Server
• OpenVPN Client (5)△
• 55 OpenVPN Tunnels
• “Certificate + Account” Mode
• Full Mode

WireGuard VPN: 20 Tunnels

Authentication:

Web Authentication:

• No Authentication
• Simple Password†
• Hotspot (Local User / Voucher† / SMS† / Radius†)
• External Radius Server
• External Portal Server†
• LDAP

Management:

Omada App: Yes

Centralized Management:

• Omada Cloud-Based Controller
• Omada Hardware Controller
• Omada Software Controller

Cloud Access: Requires the use of Omada Cloud-Based Controller

Service: Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe, DDNS Customization)

Maintenance:

• Web Management Interface
• Remote Management
• Export & Import Configuration
• SNMP v1/v2c/v3
• Diagnostics (Ping & Traceroute)†
• NTP Synchronize†
• Port Mirroring
• CLI (only in Standalone Mode)
• Syslog Support

Zero-Touch Provisioning: Requires the use of Omada Cloud-Based Controller

Management Features:

• Automatic Device Discovery§
• Batch Configuration§
• Batch Firmware Upgrading§
• Intelligent Network Monitoring§
• Abnormal Event Warnings§
• Unified Configuration§
• Reboot Schedule
• Captive Portal Configuration§

Others:

Certification: CE, FCC, RoHS

Package Contents:

• ER706W
• Power Adapter
• Quick Installation Guide

System Requirements:

• Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10/11
• MAC OS, NetWare, UNIX or Linux

Environment:

• Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F)
• Storage Temperature: -40 °C to 70 °C (-40 °F to 158 °F)
• Operating Humidity: 10
