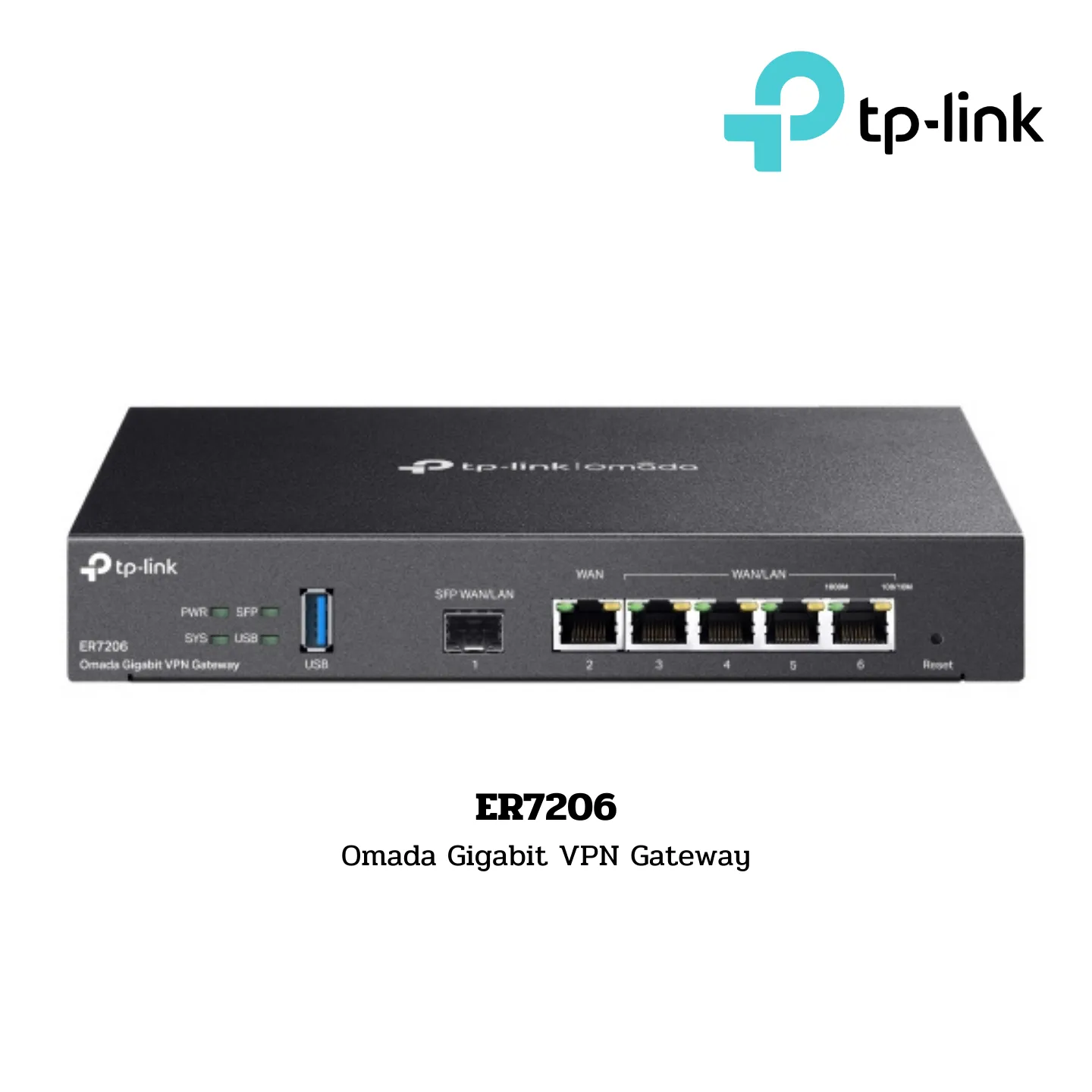

TP-Link Business Router รุ่น ER7206 Omada Gigabit VPN Gateway

ER7206
Omada Gigabit VPN Gateway

Brand:

• TP-Link

Ports:

• 1× Gigabit SFP WAN Port
• 1× Gigabit RJ45 WAN Port
• 2× Gigabit WAN/LAN RJ45 Ports
• 2× Gigabit RJ45 LAN Ports

Feature:

• Integration with Omada SDN Controller
• Support for 100 IPsec VPN Tunnels, 50 PPTP/L2TP VPN Tunnels, 50 OpenVPN Tunnels, 150,000 Concurrent Sessions
• Load Balance, Link Backup, Policy-based Firewall, Static Routing, Policy Routing, Multi-net DHCP, Guest Portal, VLAN

Security:

Access Control:

• Source/Destination IP Based Access Control

Filtering:

• WEB Group Filtering§
• URL Filtering
• Web Security§

ARP Inspection:

• Sending GARP Packets§
• ARP Scanning§
• IP-MAC Binding

Attack Defense:

• TCP/UDP/ICMP Flood Defense
• Block TCP Scan (Stealth FIN/Xmas/Null)
• Block Ping from WAN

Hardware Features:

Standards and Protocols:

• IEEE 802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE 802.3x, IEEE 802.1q
• TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, OpenVPN, WireGuard VPN, GRE VPN, SNMP

Interface:

• 1 Gigabit SFP WAN/LAN Port
• 1 Gigabit WAN Port
• 4 Gigabit LAN/WAN Ports
• 1 USB 3.0 Port (supports USB LTE dongle and USB storage)

Network Media:

• 10BASE-T: UTP category 3, 4, 5 cable (Max 100 m) EIA/TIA-568 100Ω STP (Max 100 m)
• 100BASE-TX: UTP category 5, 5e cable (Max 100 m) EIA/TIA-568 100Ω STP (Max 100 m)
• 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100 m)

Fan Quantity: Fanless

Button: Reset Button

Power Supply: 12V DC/ 1A Power Adapter

Flash: 128 MB NAND

DRAM: 512 MB DDR4

LED: PWR, SYS, SFP, USB, WAN(1000M Link/Act, 100/10M Link/Act), WAN/LAN (1000M Link/Act, 100/10M Link/Act)

Dimensions (W x D x H): 8.9 × 5.2 × 1.4 in (226 × 131 × 35 mm)

Protection: 4 kV surge protection

Enclosure: Steel

Mounting: Desktop/ Wall-Mounting/Rack-Mounting

Max Power Consumption:

• 7.5 W (with USB 3.0 connected)
• 4.5 W (without USB 3.0 connected)

Performance:

IPS Throughput:

• TCP: 229 Mbps
• UDP: 188 Mbps

DPI Throughput:

• TCP: 933 Mbps
• UDP: 927 Mbps

WireGuard VPN: 341.3 Mbps

Concurrent Session: 150,000

New Sessions / Second: 5,300

NAT:

• Static IP: 945.3 Mbps / 940.5 Mbps
• DHCP: 939.6 Mbps / 940.9 Mbps
• PPPoE: 943.6 Mbps / 940.9 Mbps
• L2TP: 880.1 Mbps / 859.0 Mbps
• PPTP: 855.0 Mbps / 907.2 Mbps

IPsec VPN Throughput:

• ESP-SHA1-AES256: 617.1 Mbps
• ESP-SHA256-AES256: 592.8 Mbps
• ESP-SHA384-AES256: 592.4 Mbps
• ESP-SHA512-AES256: 604.5 Mbps

OpenVPN: 139.1 Mbps

L2TP VPN Throughput:

• Unencrypted: 977.4 Mbps
• Encrypted: 334.6 Mbps

PPTP VPN Throughput:

• Unencrypted: 1064.1 Mbps
• Encrypted: 206.8 Mbps

SSL VPN Throughput: 131.6 Mbps

66 Byte Packet forwarding rate:

• 1,453,489 pps / 1,453,488 pps

1,518 Byte Packet forwarding rate:

• 81,279 pps / 81,275 pps

Basic Functions:

WAN Connection Type:

• Static IP
• Dynamic IP
• PPPoE (supports MRU Configuration)
• PPTP
• L2TP

MAC Clone: Modify WAN/LAN MAC Address†

DHCP:

• DHCP Server
• DHCPv6 PD Server (only in Standalone Mode)
• DHCP Options Customization
• DHCP Address Reservation
• Multi-IP Interfaces
• Multi-Net DHCP

IPv6: StaticIP/SLAAC/DHCPv6/PPPoE/6to4 Tunnel/PassThrough/Non-Address mode

VLAN: 802.1Q VLAN

IPTV: IGMP v2/v3 Proxy, Custom Mode, Bridge Mode

Advanced Functions:

ACL: IP/Port/Protocol/Domain Name Filtering

Advanced Routing:

• Static Routing
• Policy Routing
• RIP§
• OSPF§

Bandwidth Control: IP-based Bandwidth Control

Load Balance:

• Intelligent Load Balance
• Application Optimized Routing
• Link Backup (Timing, Failover)
• Online Detection

NAT:

• One-to-One NAT
• Multi-Net NAT
• Port Forwarding
• Port Triggering§
• NAT-DMZ
• FTP/H.323/SIP/IPSec/PPTP ALG
• UPnP

Session Limit: IP-based Session Limit

VPN:

GRE: √ (Only in Standalone Mode)

SSL VPN: 50 Tunnels

IPsec VPN:

• 100 IPSec VPN Tunnels
• LAN-to-LAN, Client-to-LAN
• Main, Aggressive Negotiation Mode
• DES, 3DES, AES128, AES192, AES256 Encryption Algorithm
• IPsec Failover
• IKE v1/v2
• MD5, SHA1, SHA2-384 and SHA2-512 Authentication Algorithm
• NAT Traversal (NAT-T)
• Dead Peer Detection (DPD)
• Perfect Forward Secrecy (PFS)

PPTP VPN:

• PPTP VPN Server
• PPTP VPN Client (10)‡
• 50 Tunnels
• PPTP with MPPE Encryption

L2TP VPN:

• L2TP VPN Server
• L2TP VPN Client (10)‡
• 50 Tunnels
• L2TP over IPSec

OpenVPN:

• OpenVPN Server
• OpenVPN Client (5)‡
• 55 OpenVPN Tunnels
• “Certificate + Account” Mode
• Full Mode

WireGuard VPN: 20 Tunnels

Authentication:

Web Authentication:

• No Authentication
• Simple Password*
• Hotspot (Local User / Voucher* / SMS* / Radius*)
• External Radius Server
• External Portal Server*
• LDAP§

Management:

Omada App: Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.

Centralized Management:

• Omada Cloud-Based Controller
• Omada Hardware Controller
• Omada Software Controller

Cloud Access: Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.

Service: Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe, DDNS Customization)

Maintenance:

• Web Management Interface
• Remote Management
• Export & Import Configuration
• SNMP v1/v2c/v3
• Diagnostics (Ping & Traceroute)§
• NTP Synchronize§
• Port Mirroring
• CLI (only in Standalone Mode)
• Syslog Support
• Zero-Touch Provisioning: Requires the use of Omada Cloud-Based Controller

Management Features:

• Automatic Device Discovery*
• Batch Configuration*
• Batch Firmware Upgrading*
• Intelligent Network Monitoring*
• Abnormal Event Warnings*
• Unified Configuration*
• Reboot Schedule*

Others:

Certification: CE, FCC, RoHS

Package Contents:

• ER7206
• Power Adapter
• Quick Installation Guide
• Rackmount Kit

System Requirements: Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows

Environment:

• Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F)
• Storage Temperature: -40 °C to 70 °C (-40 °F to 158 °F)
• Operating Humidity: 10% to 90% non-condensing
• Storage Humidity: 5% to 90% non-condensing
