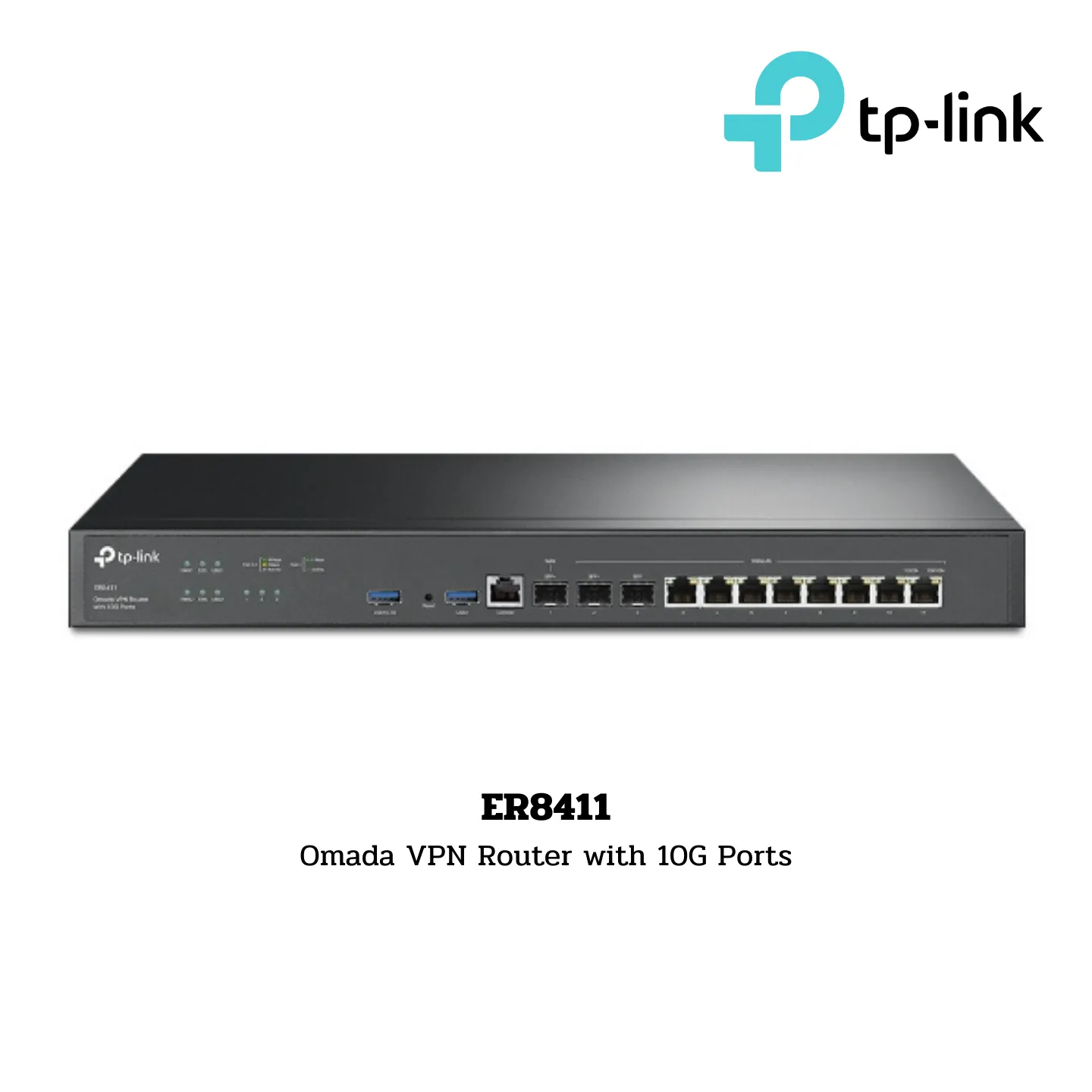

TP-Link Business Router รุ่น ER8411 Omada VPN Router with 10G Ports

ER8411
Omada VPN Router with 10G Ports

Brand:

• TP-Link

Ports:

• 1× 10G SFP+ WAN Port
• 1× 10G SFP+ WAN/LAN Port
• 1× Gigabit SFP WAN/LAN Port
• 8× Gigabit RJ45 WAN/LAN Ports
• 2× USB 3.0 Ports

Feature:

• Integration with Omada SDN Controller
• Support SSL VPN, OpenVPN, IPsec, PPTP, L2TP, L2TP over IPSec VPN
• 1,500,000 Concurrent Sessions
• Dual Power Supply
• Load Balance, Link Backup, 4G LTE Backup with USB Dongle
• Policy-based Firewall, Static Routing, Policy Routing, Multi-net DHCP, Guest Portal, VLAN
• Support RJ45 SFP+/SFP Module

Security:

Access Control: Source/Destination IP Based Access Control

Filtering:

• WEB Group Filtering*5
• URL Filtering
• Web Security*5

ARP Inspection:

• Sending GARP Packets*5
• ARP Scanning*5
• IP-MAC Binding*5

Attack Defense:

• TCP/UDP/ICMP Flood Defense
• Block TCP Scan (Stealth FIN/Xmas/Null)
• Block Ping from WAN

Hardware Features:

Standards and Protocols:

• IEEE 802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE 802.3x, IEEE 802.1q
• TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, OpenVPN, SNMP, WireGuard VPN

Interface:

• 2× 10GE SFP+ Ports (1 WAN, 1 WAN/LAN)
• 1× 1GE SFP WAN/LAN Port
• 8× 1GE RJ45 WAN/LAN Ports
• 1× RJ45 Console Port
• 2× USB Ports (Connecting 4G/3G Modem as WAN Backup)

Network Media:

• 10BASE-T: UTP category 3, 4, 5 cable (Max 100 m) EIA/TIA-568 100Ω STP (Max 100 m)
• 100BASE-TX: UTP category 5, 5e cable (Max 100 m) EIA/TIA-568 100Ω STP (Max 100 m)
• 1000BASE-T: UTP category 5e, 6 cable (Max 100 m)

Fan Quantity: 2

Button: Reset Button

Power Supply: Redundant Dual Power Supplies (100–240 VAC, 50/60 Hz)

PoE Budget: N/A

Flash: 4MB SPI NOR + 256 MB NAND

DRAM: 4 GB DDR4

LED: PWR, SYS, WAN, LAN, USB, FAN

Dimensions (W x D x H): 17.3 × 8.7 × 1.7 in (440 × 220 × 44 mm)

Protection: 4 kV surge protection

Enclosure: Steel

Mounting: Rack Mountable

Max Power Consumption:

• 26.36 W (with USB 3.0 connected)
• 19.12 W (without USB 3.0 connected)

Performance:

WireGuard VPN: 1411 Mbps

Concurrent Session: 2,300,000

New Sessions / Second: 20,000

NAT (Static IP):

• Upload: 9445.82 Mbps
• Download: 9449.26 Mbps

NAT (DHCP):

• Upload: 9426.83 Mbps
• Download: 9426.20 Mbps

NAT (PPPoE):

• Upload: 9413.96 Mbps
• Download: 9102.01 Mbps

NAT (L2TP):

• Upload: 4230.62 Mbps
• Download: 4169.53 Mbps

NAT (PPTP):

• Upload: 3933.86 Mbps
• Download: 3821.97 Mbps

IPsec VPN Throughput:

• SHA1-AES256: 2140.45 Mbps
• SHA2-AES256: 2080.20 Mbps

OpenVPN: 1665.64 Mbps

L2TP VPN Throughput:

• Unencrypted: 5013.50 Mbps
• Encrypted: 2274.74 Mbps

PPTP VPN Throughput:

• Unencrypted: 10143 Mbps
• Encrypted: 952 Mbps

SSL VPN Throughput: 1511.10 Mbps

1,518 Byte Packet forwarding rate:

• Upload: 9970 Mbps
• Download: 9970 Mbps

Basic Functions:

WAN Connection Type:

• Static/Dynamic IP
• PPPoE
• PPTP
• L2TP
• 6to4 Tunnel
• Pass-Through

Mobile Broadband: 4G/3G modem for backup via USB port

MAC Clone: Modify WAN/LAN MAC Address*4

DHCP:

• DHCP Server/Client
• DHCP Address Reservation
• Multi-net DHCP
• Multi-IP Interfaces

IPv6: WAN Connection

VLAN: 802.1Q VLAN

IPTV: IGMP v2/v3 Proxy

Advanced Functions:

ACL: IP/Port/Protocol/Domain Name Filtering

Advanced Routing:

• Static Routing
• Policy Routing

Bandwidth Control:

• IP/Port-based Bandwidth Control
• Guarantee & Limited Bandwidth

Load Balance:

• Intelligent Load Balance
• Application Optimized Routing
• Link Backup (Timing*5, Failover)
• Online Detection

NAT:

• One-to-One NAT*5
• Multi-Net NAT
• Virtual Server
• Port Triggering*5
• NAT-DMZ
• FTP/H.323/SIP/IPSec/PPTP ALG
• UPnP

Security:

SPI Firewall VPN Passthrough FTP/H.323/PPTP/SIP/IPsec ALG DoS Defence, Ping of Death Local Management

Session Limit: IP-based Session Limit

VPN:

SSL VPN:

• SSL VPN Server
• SSL VPN Client
• 500 SSL VPN Tunnels

IPsec VPN:

• 300 IPSec VPN Tunnels
• LAN-to-LAN, Client-to-LAN
• Main, Aggressive Negotiation Mode
• DES, 3DES, SHA1, SHA2, AES128, AES192, AES256 Encryption Algorithm
• IKE v1/v2
• MD5, SHA1 Authentication Algorithm
• NAT Traversal (NAT-T)
• Dead Peer Detection (DPD)
• Perfect Forward Secrecy (PFS)

PPTP VPN:

• PPTP VPN Server
• PPTP VPN Client (32)*6
• 300 Tunnels (Shared with L2TP)
• PPTP with MPPE Encryption

L2TP VPN:

• L2TP VPN Server
• L2TP VPN Client (32)*6
• 300 Tunnels (Shared with PPTP)
• L2TP over IPSec

OpenVPN:

• OpenVPN Server
• OpenVPN Client (10)*6
• 110 OpenVPN Tunnels

Authentication:

Web Authentication:

• No Authentication
• Simple Password*2
• Hotspot (Local User / Voucher2 / SMS2 / Radius*2)
• External Radius Sever
• External Portal Sever*2
• Instagram Follow*2

Management:

Omada App: Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.

Centralized Management:

• Omada Hardware Controller (OC300)
• Omada Hardware Controller (OC200)
• Omada Software Controller
• Omada Cloud-Based Controller

Cloud Access: Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.

Service: Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe)

Maintenance:

• Web Management Interface
• Remote Management
• Export & Import Configuration
• SNMP v1/v2c/v3
• Diagnostics (Ping & Traceroute)*5
• NTP Synchronize*5
• Syslog Support
• Zero-Touch Provisioning: Yes. Requiring the use of Omada Cloud-Based Controller.

Management Features:

• Automatic Device Discovery
• Intelligent Network Monitoring
• Abnormal Event Warnings
• Unified Configuration
• Reboot Schedule
• Captive Portal Configuration

Others:

Certification: CE, FCC, RoHS

Package Contents:

• Omada 10G Multi-WAN Security Gateway ER8411
• Power Cord
• Quick Installation Guide
• Rackmount Kit

System Requirements:Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10/11, MAC OS, NetWare, UNIX or Linux

Environment:

• Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F)
• Storage Temperature: -40 °C to 70 °C (-40 °F to 158 °F)
• Operating Humidity: 10% to 90% non-condensing
• Storage Humidity: 5% to 90% non-condensing
