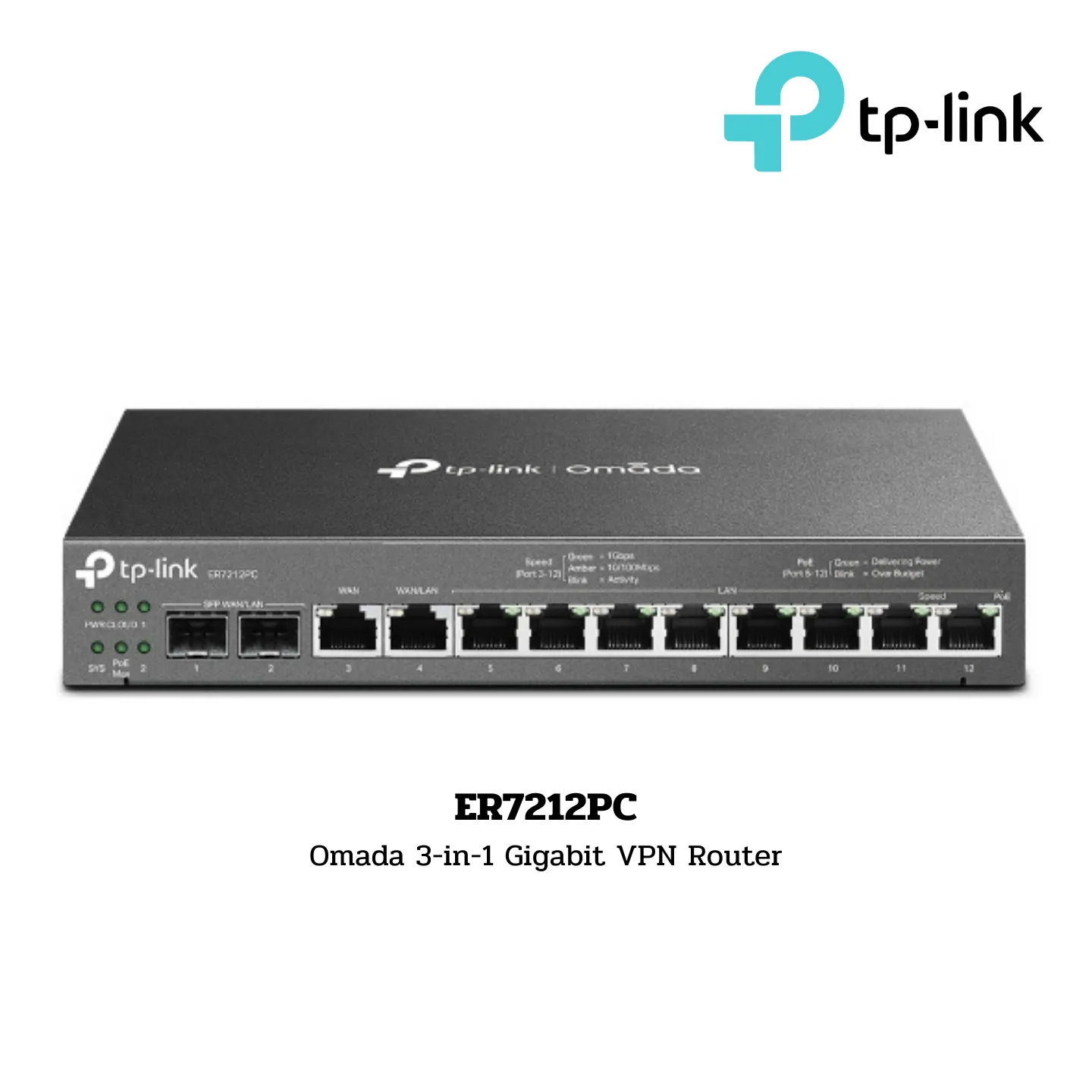

TP-Link Business Router รุ่น ER7212PC Omada 3-in-1 Gigabit VPN Router

ER7212PC
Omada 3-in-1 Gigabit VPN Router

Brand:

• TP-Link

Ports:

• 2× Gigabit SFP WAN/LAN Ports
• 1× Gigabit RJ45 WAN Port
• 1× Gigabit RJ45 WAN/LAN Port
• 8× Gigabit RJ45 LAN Ports

Specification:

• 802.3at/af, 8 Ports with 110 W PoE Power, Desktop & Wall-mount Steel Case

Feature:

• 3-in-1 (Router, PoE+ Switch, Controller)
• Support IPSec/PPTP/L2TP VPN & OpenVPN
• Load Balance, Link Backup, Policy-based Firewall, Static Routing, Policy Routing, Multi-net DHCP, Guest Portal, VLAN, Cloud Access, Multi-site Management, Omada App

Security:

Access Control: Source/Destination IP Based Access Control

Filtering: URL Filtering

Attack Defense:

• TCP/UDP/ICMP Flood Defense
• Block TCP Scan (Stealth FIN/Xmas/Null)
• Block Ping from WAN

Hardware Features:

Standards and Protocols:

• IEEE 802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE 802.3x, IEEE 802.1q
• TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, SNMP

Interface:

• 2 Gigabit SFP WAN/LAN ports
• 1 Gigabit WAN port
• 1 Gigabit LAN/WAN port
• 8 Gigabit LAN ports

Network Media:

• 10BASE-T: UTP category 3, 4, 5 cable (Max 100 m)
• 100BASE-TX: UTP category 5, 5e cable (Max 100 m)
• 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100 m)

Fan Quantity: Fanless

Button: Reset Button

Power Supply: 53.5VDC/2.43A Adapter

PoE Budget: 8 ports PoE+ output, 110 W PoE Budget

Flash: 8Mb Nor + 4 GB EMMC

DRAM: 1 GB DDR3

LED: PWR, SYS, CLOUD, PoE Max, SFP 1, SFP 2, WAN (Speed, Link/Act), LAN (Speed, Link/Act)

Dimensions (W x D x H): 8.9 × 5.2 × 1.4 in (226 × 131 × 35 mm)

Protection: 4 kV surge protection

Enclosure: Steel

Mounting: Desktop/Wall-mount

Max Power Consumption:

• 133.2W with PoE Max
• 13.88W without PoE

Performance:

Concurrent Session: 24,980

New Sessions / Second: 1,900

NAT:

• Static IP: 935.5 Mbps / 942.1 Mbps
• DHCP: 940.2 Mbps / 941.7 Mbps
• PPPoE: 913.1 Mbps / 935.2 Mbps
• L2TP: 545.0 Mbps / 912.7 Mbps
• PPTP: 523.0 Mbps / 912.8 Mbps

IPsec VPN Throughput (AES256): 168.5 Mbps

OpenVPN: 34 Mbps

L2TP VPN Throughput:

• Unencrypted: 845.3 Mbps
• Encrypted: 333.2 Mbps

PPTP VPN Throughput:

• Unencrypted: 1012.6 Mbps
• Encrypted: 401.4 Mbps

66 Byte Packet forwarding rate:

• 154,069 pps / 156,977 pps

1,518 Byte Packet forwarding rate:

• 81,193 pps / 81,193 pps

Basic Functions:

WAN Connection Type:

• Static IP
• Dynamic IP
• PPPoE
• PPTP
• L2TP

MAC Clone: Modify WAN MAC Address

DHCP:

• DHCP Server
• DHCP Address Reservation
• Multi-IP Interfaces
• Multi-Net DHCP

IPv6: Support

VLAN: 802.1Q VLAN

IPTV: IGMP v2/v3 Proxy

Advanced Functions:

ACL: IP/Port/Protocol/Domain Name Filtering

Advanced Routing:

• Static Routing
• Policy Routing

Bandwidth Control: IP/Port-based Bandwidth Control

Load Balance:

• Intelligent Load Balance
• Application Optimized Routing
• Link Backup
• Online Detection

NAT:

• Multi-Net NAT
• Virtual Server
• NAT-DMZ
• FTP/H.323/SIP/IPSec/PPTP ALG
• UPnP

Session Limit: IP-based Session Limit

VPN:

IPsec VPN:

• 20 IPSec VPN Tunnels
• LAN-to-LAN, Client-to-LAN
• Main, Aggressive Negotiation Mode
• AES128, AES192, AES256 Encryption Algorithm
• IKE v1/v2
• SHA1, SHA2 Authentication Algorithm
• NAT Traversal (NAT-T)
• Dead Peer Detection (DPD)
• Perfect Forward Secrecy (PFS)

PPTP VPN:

• PPTP VPN Server
• PPTP VPN Client (10)
• 16 Tunnels
• PPTP with MPPE Encryption

L2TP VPN:

• L2TP VPN Server
• L2TP VPN Client (10)
• 16 Tunnels
• L2TP over IPSec

OpenVPN:

• OpenVPN Server
• OpenVPN Client (10)§
• 16 OpenVPN Tunnels

Authentication:

Web Authentication:

• No Authentication
• Simple Password
• Hotspot (Local User / Voucher / SMS / Radius)
• External Radius Server
• External Portal Server

Management:

Omada App: Yes

Centralized Management:

• Omada Hardware Controller (OC300)
• Omada Hardware Controller (OC200)
• Omada Software Controller
• Omada Cloud-Based Controller

Cloud Access: Yes

Service: Dynamic DNS (Dyndns, No-IP)

Maintenance:

• Web Management Interface
• Remote Management
• Export & Import Configuration
• SNMP v1/v2c/v3
• Syslog Support
• Zero-Touch Provisioning: Yes, requiring the use of Omada Cloud-Based Controller.

Management Features:

• Automatic Device Discovery
• Intelligent Network Monitoring
• Abnormal Event Warnings
• Unified Configuration
• Reboot Schedule
• Captive Portal Configuration
• Management up to 1 Router, 2 Switches, and 10 EAPs

Others:

Certification: CE, FCC, RoHS

Package Contents:

• ER7206
• Power Adapter
• Quick Installation Guide

System Requirements: Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10 ,MAC OS, NetWare, UNIX or Linux

Environment:

• Operating Temperature: 0 °C to 45 °C (32 °F to 113 °F)
• Storage Temperature: -40 °C to 70 °C (-40 °F to 158 °F)
• Operating Humidity: 10% to 90% non-condensing
• Storage Humidity: 5% to 90% non-condensing
