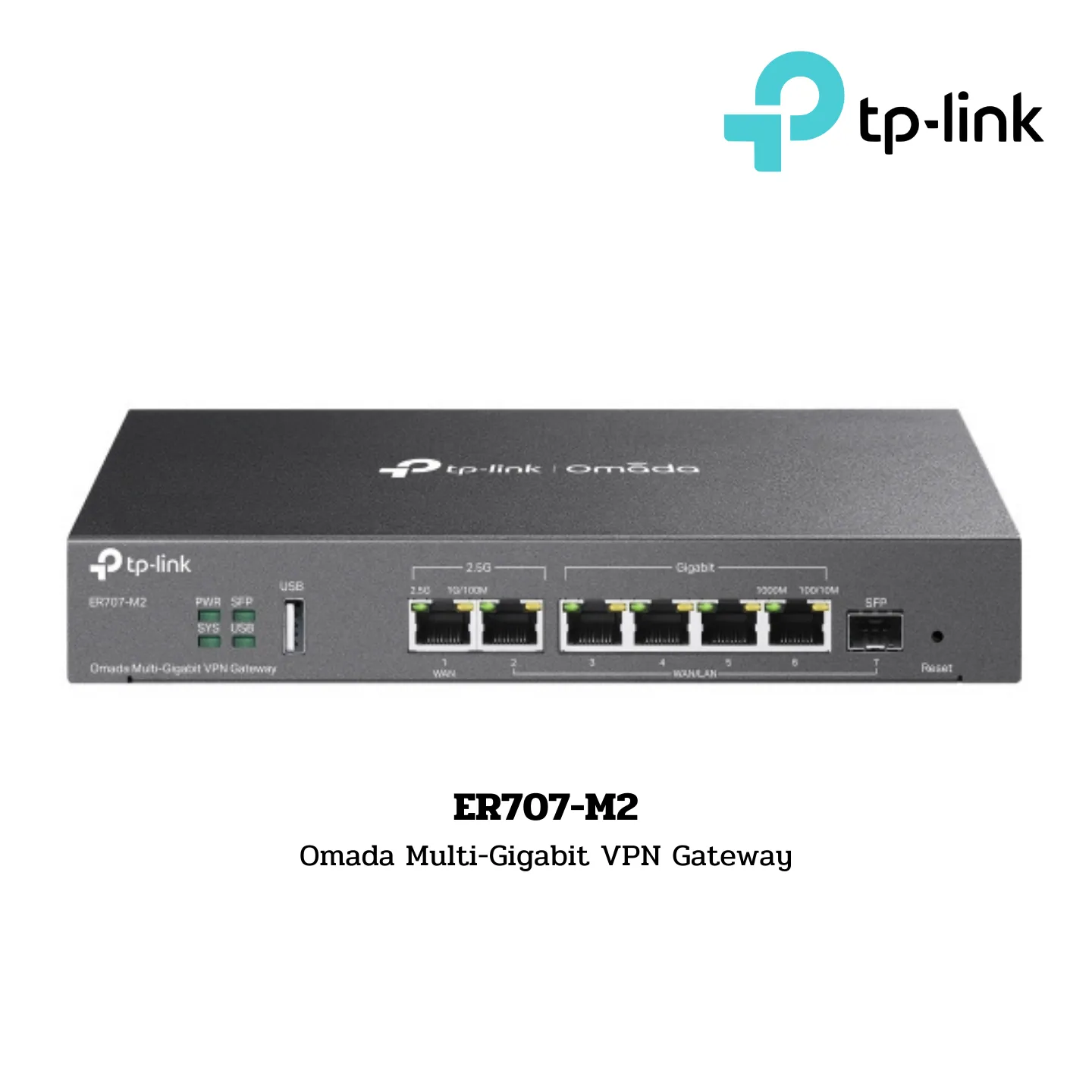

TP-Link Business Router รุ่น ER707-M2 Omada Multi-Gigabit VPN Gateway

ER707-M2
Omada Multi-Gigabit VPN Gateway

Brand:

• TP-Link

Ports:

• 1× 2.5G RJ45 WAN Port
• 1× 2.5G RJ45 WAN/LAN Port
• 1× Gigabit SFP WAN/LAN Port
• 4× Gigabit RJ45 WAN/LAN Ports
• 1× USB 2.0 Port

Feature:

• Integration with Omada SDN Controller
• Support SSL VPN, OpenVPN, and IPsec/PPTP/L2TP/L2TP over IPSec VPN
• 500,000 Concurrent Sessions
• Load Balance, Link Backup, 4G LTE Backup with USB Dongle
• Policy-based Firewall, Static Routing, Policy Routing, Multi-net DHCP, Guest Portal, VLAN

Security:

• Access Control: Source/Destination IP Based Access Control
• Filtering:
  • WEB Group Filtering§
  • URL Filtering
  • Web Security§
• ARP Inspection:
  • Sending GARP Packets§
  • ARP Scanning§
  • IP-MAC Binding§
• Attack Defense:
  • TCP/UDP/ICMP Flood Defense
  • Block TCP Scan (Stealth FIN/Xmas/Null)
  • Block Ping from WAN

Hardware Features:

Standards and Protocols:

• IEEE 802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE 802.3x, IEEE 802.1q, IEEE802.3bz
• TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, OpenVPN, SNMP, WireGuard VPN

Interface:

• 1× 2.5G RJ45 WAN Port
• 1× 2.5G RJ45 WAN/LAN Port
• 1× Gigabit SFP WAN/LAN Port
• 4× Gigabit RJ45 WAN/LAN Ports
• 1× USB 2.0 Port (Supports USB storage and LTE backup with LTE dongle)

Network Media:

• 10BASE-T: UTP category 3, 4, 5 cable (Max 100 m) EIA/TIA-568 100Ω STP (Max 100 m)
• 100BASE-TX: UTP category 5, 5e cable (Max 100 m) EIA/TIA-568 100Ω STP (Max 100 m)
• 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100 m)
• 2500BASE-T: UTP category 5, 5e, 6 cable (Max 100 m)

Fan Quantity: Fanless

Button: Reset Button

Power Supply: 12V/1.5A Adapter

Flash: 128MB NAND

DRAM: 1 GB DDR4

LED: PWR, SYS, SFP, USB, WAN (Speed, Link/Act), LAN (Speed, Link/Act)

Dimensions (W x D x H): 8.9 × 5.2 × 1.4 in (226 × 131 × 35 mm)

Protection: 4 kV surge protection

Enclosure: Steel

Mounting: Rackmount, Desktop, or Wall Mount

Max Power Consumption:

• 14.2 W (with USB2.0 connected)
• 7.1 W (without USB2.0 connected)

Performance:

IPS Throughput:

• TCP: 208 Mbps
• UDP: 161 Mbps

DPI Throughput:

• TCP: 1823 Mbps
• UDP: 1272 Mbps

Concurrent Session: 500,000

New Sessions / Second: 6,000

NAT:

• Static IP: 2365.17 Mbps / 2364.45 Mbps
• DHCP: 2364.45 Mbps / 2366.04 Mbps
• PPPoE: 2347.14 Mbps / 2348.29 Mbps
• L2TP: 1308.86 Mbps / 974.10 Mbps
• PPTP: 1236.27 Mbps / 1280.99 Mbps

IPsec VPN Throughput:

• ESP-SHA1-AES256: 673.3 Mbps
• ESP-SHA256-AES256: 650.2 Mbps
• ESP-SHA384-AES256: 629.3 Mbps
• ESP-SHA512-AES256: 633.8 Mbps

L2TP VPN Throughput:

• Unencrypted: 1243.7 Mbps
• Encrypted: 561.0 Mbps

SSL VPN Throughput: 132.24 Mbps

66 Byte Packet forwarding rate:

• 1832.69 Mbps / 1741.84 Mbps

1,518 Byte Packet forwarding rate:

• 2461.18 Mbps / 2457.32 Mbps

Basic Functions:

WAN Connection Type:

• IPv4_Static IP
• IPv4_Dynamic IP
• IPv4_PPPOE
• IPv4_L2TP
• IPv4_PPTP
• IPv6_PPP
• IPv6_DHCPv6
• IPv6_Static IP
• IPv6_6in4
• IPv6_Pass-Through

Mobile Broadband: 4G/3G modem for backup via USB port

MAC Clone: Modify WAN/LAN MAC Address†

DHCP:

• DHCP Server
• DHCPv6 PD Server (only in Standalone Mode)
• DHCP Options Customization
• DHCP Address Reservation
• Multi-IP Interfaces*
• Multi-Net DHCP*

IPv6: StaticIP / SLAAC / DHCPv6 / PPPoE / 6to4Tunnel / PassThrough / Non-Address mode

VLAN: 802.1Q VLAN

IPTV: IGMP v2/v3 Proxy, Custom Mode, Bridge Mode

Advanced Functions:

Advanced Routing:

• Static Routing
• Policy Routing
• RIP (only in Standalone Mode)
• OSPF (only in Standalone Mode)

Bandwidth Control:

• IP/Port-based Bandwidth Control
• Guarantee & Limited Bandwidth

Load Balance:

• Intelligent Load Balance
• Application Optimized Routing
• Link Backup (Timing§, Failover)
• Online Detection

NAT:

• One-to-One NAT§
• Multi-Net NAT
• Port Forwarding
• Port Triggering§
• NAT-DMZ
• FTP/H.323/SIP/IPSec/PPTP ALG
• UPnP

Session Limit: IP-based Session Limit

VPN:

IPsec VPN:

• 100 IPSec VPN Tunnels
• LAN-to-LAN, Client-to-LAN
• Main, Aggressive Negotiation Mode
• DES, 3DES, SHA1, AES128, AES192, AES256 Encryption Algorithm
• IKEv1/v2
• MD5, SHA1, SHA2-384 and SHA2-512 Authentication Algorithm
• NAT Traversal (NAT-T)
• Dead Peer Detection (DPD)
• Perfect Forward Secrecy (PFS)

PPTP VPN:

• PPTP VPN Server
• PPTP VPN Clients (12)
• 60 Tunnels (Shared with L2TP)
• PPTP with MPPE Encryption

L2TP VPN:

• L2TP VPN Server
• L2TP VPN Clients (12)
• 60 Tunnels (Shared with PPTP)
• L2TP over IPSec

OpenVPN:

• OpenVPN Server
• OpenVPN Clients (6)
• 66 OpenVPN Tunnels*

Authentication:

Web Authentication:

• No Authentication
• Simple Password*
• Hotspot (Local User/Voucher/SMS/Radius*)
• External Radius Server
• External Portal Server*
• LDAP

Management:

Omada App: Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.

Centralized Management:

• Omada Cloud-Based Controller
• Omada Hardware Controller
• Omada Software Controller

Cloud Access: Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.

Service: Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe)

Maintenance:

• Web Management Interface
• Remote Management
• Export & Import Configuration
• SNMP v1/v2c/v3*
• Diagnostics (Ping & Traceroute)§
• NTP Synchronize§
• Port Mirroring
• CLI (only in Standalone Mode)
• Syslog Support
• Zero-Touch Provisioning: Requires the use of Omada Cloud-Based Controller

Management Features:

• Automatic Device Discovery*
• Batch Configuration*
• Batch Firmware Upgrading*
• Intelligent Network Monitoring*
• Abnormal Event Warnings*
• Unified Configuration*
• Reboot Schedule*

Others:

Certification: CE, FCC, RoHS

Package Contents:

• ER707-M2
• Power Adapter
• Quick Installation Guide
• Rackmount Kit

System Requirements: Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10, MAC OS, NetWare, UNIX or Linux

Environment:

• Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F)
• Storage Temperature: -40 °C to 70 °C (-40 °F to 158 °F)
• Operating Humidity: 10% to 90% non-condensing
• Storage Humidity: 5% to 90% non-condensing
